RAM® Heavy Duty C-Clamp Base with B Size Ball

Part#: RAM-B-202U-CC1
UPC: 793442029950

Kit Components

Previous Slide Next Slide
$78.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
RAM® 10.5" Double Socket Arms - Long & Medium B Size

RAM® 10.5" Double Socket Arms - Long & Medium B Size

$65.99

Overview

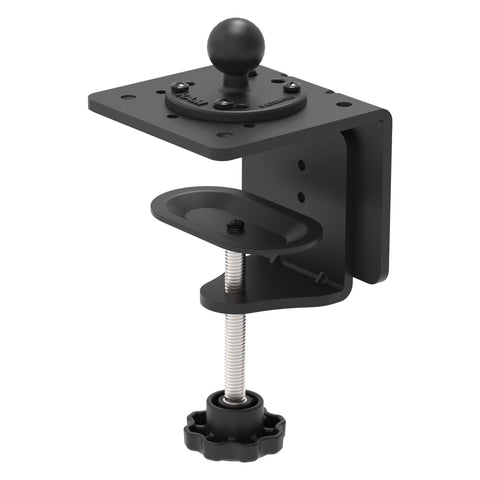

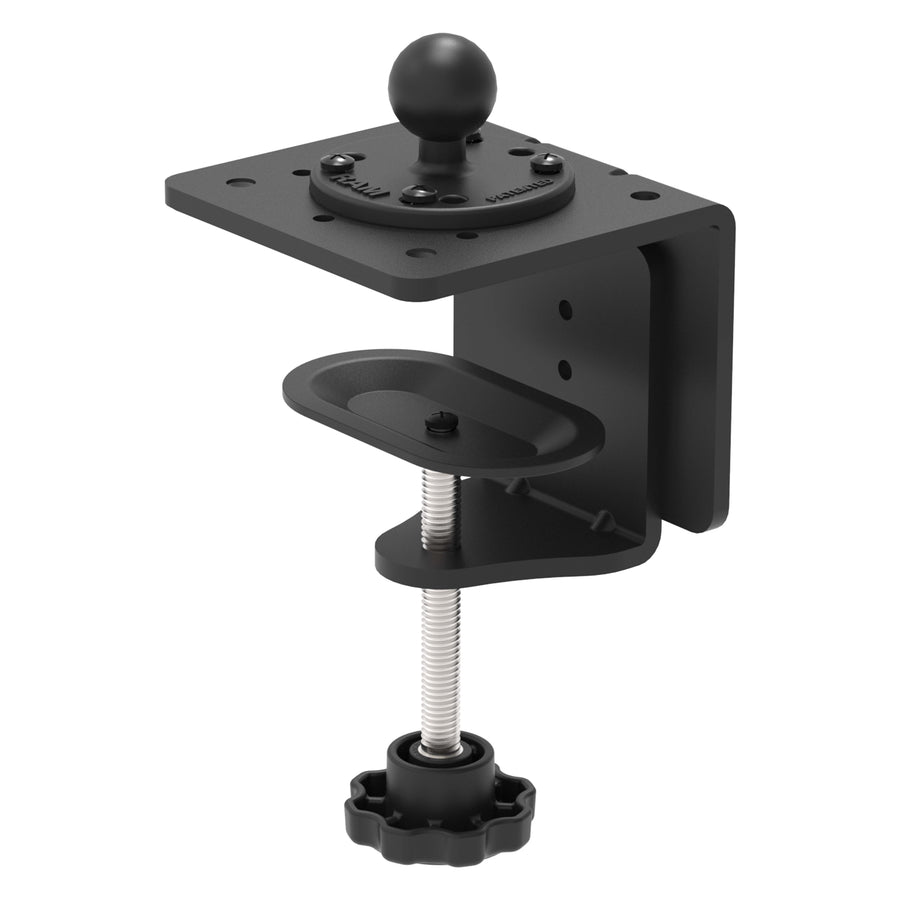

The RAM® Heavy Duty C-Clamp Base with B Size Ball (RAM-B-202U-CC1) is a rugged, steel clamp mount designed for flexible, non-permanent device installation across a wide variety of workspaces. Ideal for desks, tables, carts, or mobile stations, this clamp secures firmly to surfaces ranging from 0" up to 4" in thickness—no minimum edge depth required. Built for durability, the all-steel construction delivers long-lasting performance, while the padded interior safeguards mounting surfaces from scuffs or scratches. Whether in industrial settings or professional offices, this clamp provides a secure hold without compromising aesthetics. This heavy-duty desk clamp includes a B size RAM® ball base for mounting your desired device holder. Additionally, a 4-hole AMPS pattern is located on the side of the clamp, providing a convenient mounting point for smaller mounting solutions like phones, tablets, scanners, and more. With its durable construction and multiple compatibility options, this C-clamp base supports everything from lightweight tablet mounts to heavy-duty docking stations. The tool-less adjustment knob allows for fast installation and easy removal, making it perfect for temporary workstations, demo stations, or environments where adaptability is key.

Features

  • Clamp secures to surfaces 0–4” thick; includes B size ball
  • Includes B size ball, complete the solution with a B size arm and small device holders
  • Made of high-strength steel with padded sides for surface protection
  • Tool-free adjustment for rapid deployment
  • Backed by a lifetime warranty

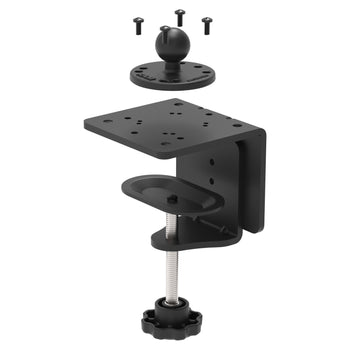

hardware included:

Assembly Hardware
(4) #8-32 x 5/8" Screws
(4) Nylon Spacers

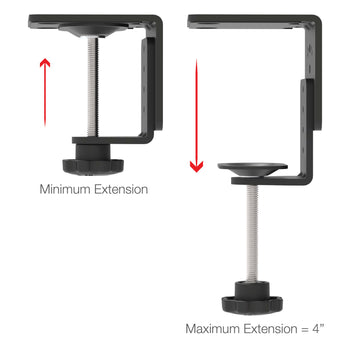

clamp range:

0" - 4"

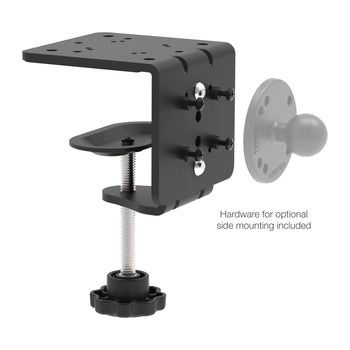

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

2.4 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
