$162.49
Print Details
RAM® X-Grip® with RAM® Twist-Lock™ Dual Suction for 9"-10" Tablets
Part#:RAM-B-189-UN9-FRO1-KRU UPC:793442124693 Patented

Overview

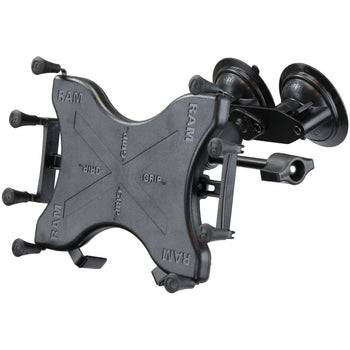

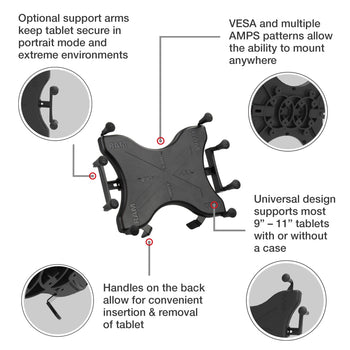

The RAM-B-189-UN9-FRO1-KRU consists of a double 3.3" twist lock suction cup base, double socket arm, extended retention knob and universal X-Grip® cradle for 10" Tablets. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM-B-189-UN9-FRO1-KRU expands and contracts for perfect fit of most 10" tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®. The X-Grip® cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

hardware included

Assembly Hardware

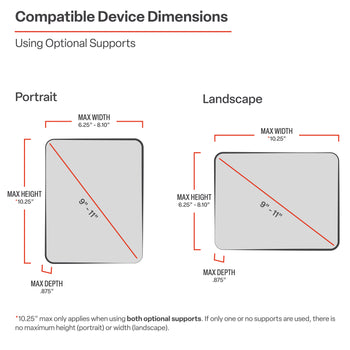

holder dimensions

Max Height: 10.25" (using optional supports)
Width Range: 6.25" - 8.1"
Max Depth: .875"

suction size

(2) 3.3" Diameter Bases, Total Width 7.15"

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Powder coated steel
Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

2.24 lb

Components
