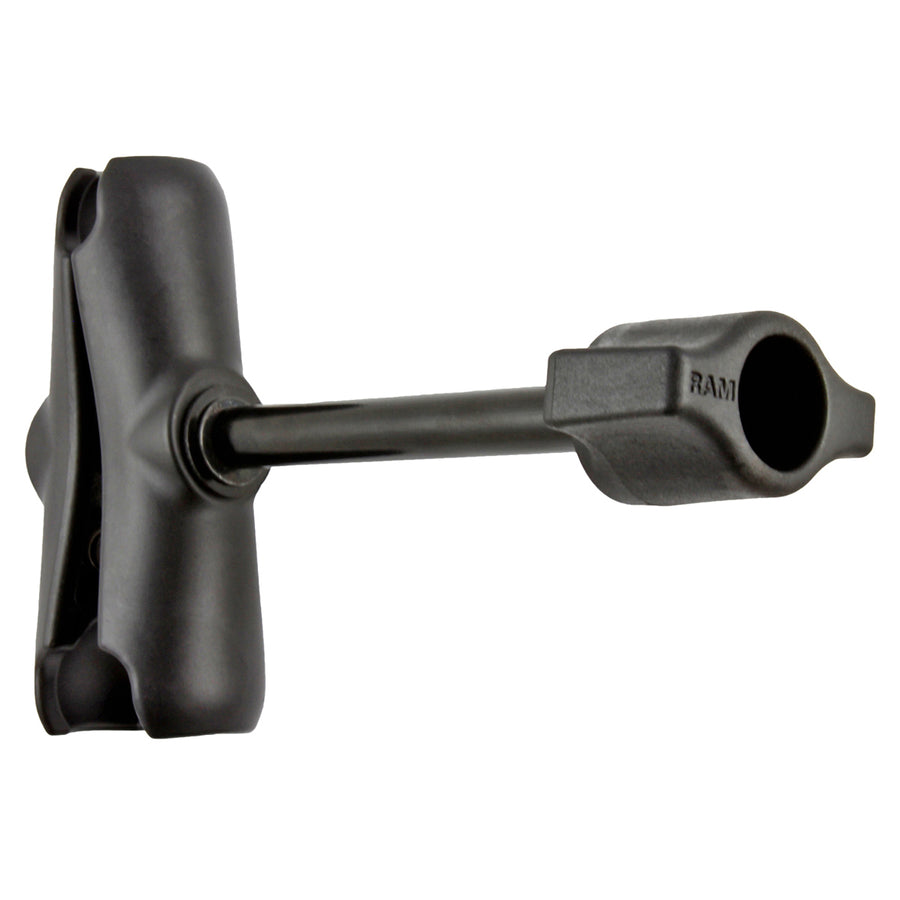

RAM® Double Socket Arm with Retention Knob - B Size Medium

Part#: RAM-B-201-ALA1-KRU
UPC: 793442944628

Kit Components

$32.99

Size Guide

Arm lengths
Short, medium, and long double socket arms compared side by side. This product uses a Medium arm

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length Measurement A Size B Size — this product's ball size C Size D Size E Size
Short Overall Length N/A 2.42" 3.56" 5.69" 5.69"
Socket-to-Socket Length N/A 1.75" 2.5" 4.66" 4.66"
Medium Overall Length 2.42" 3.73" — this product 5.69" 8.44" 12.63"
Socket-to-Socket Length 1.75" 3" 4.66" 6.88" 9.88"
Long Overall Length 3.56" 6" 9.13" 12.98" N/A
Socket-to-Socket Length 3.12" 5.31" 8" 11.41" N/A

Overview

The RAM-B-201-ALA1-KRU, STANDARD length double socket arm with retention knob, has a socket at both ends that accommodates 1" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. The knob extension allows for easy adjustment of the mount and prevents over loosening of the knob. This socket technology allows for almost infinite adjustment and perfect viewing angles.

product dimensions:

Overall Length: 3.73"

socket to socket length:

3"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.41 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
