RAM® Twist-Lock™ Dual Suction Cup Base with Straight Plate
Part #: RAM-B-189B-FRO1U UPC: 793442944604 Patented

Product Information

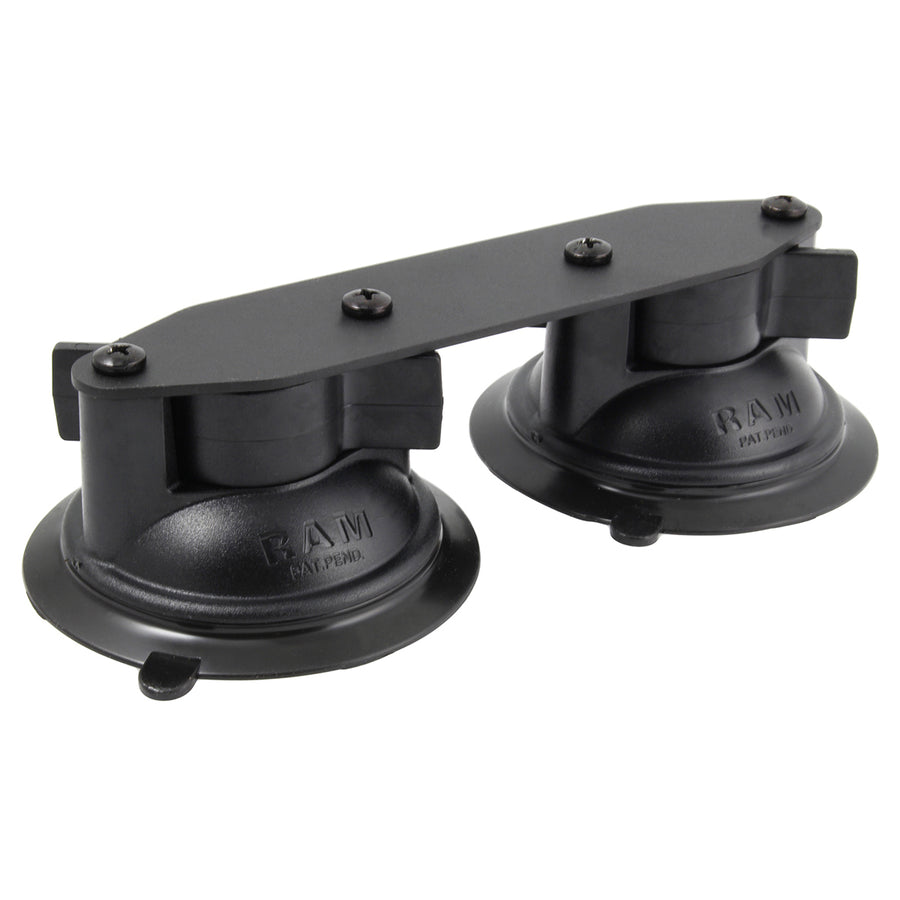

Overview	The RAM-B-189B-FRO1U consists of a double 3.3" twist lock suction cup base and straight plate containing a AMPs 2-hole pattern. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces. The included hole pattern will allow attachment to all RAM bases that contain the universal AMPs hole pattern.

Specifications
hardware included	Assembly Hardware
suction size	(2) 3.3" Diameter Bases, Total Width 7.15"
hole pattern	2-Hole AMPS: 1.912"
materials	Powder coated steel High strength composite
packaging type	Poly Bag
Weight	0.5 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

RAM® Twist-Lock™ Dual Suction Cup Base with Straight Plate

Questions about our products? Email us for support.

Patented

RAM® Twist-Lock™ Dual Suction Cup Base with Straight Plate

Part#: RAM-B-189B-FRO1U

UPC: 793442944604

$31.49

Options

Overview

The RAM-B-189B-FRO1U consists of a double 3.3" twist lock suction cup base and straight plate containing a AMPs 2-hole pattern. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces. The included hole pattern will allow attachment to all RAM bases that contain the universal AMPs hole pattern.

hardware included:

Assembly Hardware

suction size:

(2) 3.3" Diameter Bases, Total Width 7.15"

hole pattern:

2-Hole AMPS: 1.912"

materials:

Powder coated steel
High strength composite

packaging type:

Poly Bag

Weight:

0.5 lb

Additional Information:

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
