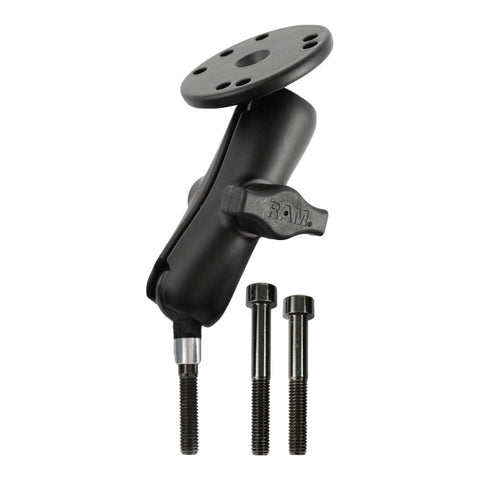

RAM® Handlebar Clamp Mount with M8 Bolts and Round Plate - Medium
Part #: RAM-B-186-202U UPC: 793442925122

Product Information

Overview

Your motorcycle rides on rubber tires for grip and to soften the ride. Why should it be any different for your mounted electronics? With RAM's patented rubber ball and socket technology, the turn of a single knob grips the adjustment arm to a rubber ball designed to dampen shock and vibration. With RAM products, it's all grip and no slip plus protection for your valuable electronics. Simply place our easy to install ball base onto the motorcycle handlebar top clamp and you're done. After that, a world of mounting possibilities just opened up. The round base contains a 1" diameter rubber ball connected to a flat 2.5" diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern.

Specifications
hardware included	(1) M8 x 55mm Socket Head Cap Screw (1) M8 x 60mm Socket Head Cap Screw (1) M8 x 65mm Socket Head Cap Screw
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.64 lb
Additional Information	To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.

RAM® Handlebar Clamp Mount with M8 Bolts and Round Plate - Medium

RAM® Handlebar Clamp Mount with M8 Bolts and Round Plate - Medium

Name: RAM® Handlebar Clamp Mount with M8 Bolts and Round Plate - Medium
Brand: RAM Mounts
SKU: RAM-B-186-202U
Price: 40.49 USD
Availability: InStock

Part#: RAM-B-186-202U

UPC: 793442925122

$40.49

Options

Overview

hardware included:

(1) M8 x 55mm Socket Head Cap Screw
(1) M8 x 60mm Socket Head Cap Screw
(1) M8 x 65mm Socket Head Cap Screw

socket to socket length:

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.64 lb

Additional Information:

To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

RAM® Handlebar Clamp Mount with M8 Bolts and Round Plate - Medium

$40.49

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size	Ball Diameter	Max Load*	Best For
A	0.56" (14.3 mm)	0.5 lb	Action cameras and other ultra-light devices
B — this product	1" (25.4 mm)	2 lbs	Phones, GPS units, and small tablets — the most common size
C	1.5" (38.1 mm)	4 lbs	Large tablets, fish finders, and rougher rides
D	2.25" (57.2 mm)	6 lbs	Rugged tablets, laptops, and heavy equipment
E	3.38" (85.9 mm)	15 lbs	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

Short, medium, and long double socket arms compared side by side. This product uses a Medium arm — Arm lengths

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length	Measurement	A Size	B Size — this product's ball size	C Size	D Size	E Size
Short	Overall Length	N/A	2.42"	3.56"	5.69"	5.69"
Short	Socket-to-Socket Length	N/A	1.75"	2.5"	4.66"	4.66"
Medium	Overall Length	2.42"	3.73" — this product	5.69"	8.44"	12.63"
Medium	Socket-to-Socket Length	1.75"	3"	4.66"	6.88"	9.88"
Long	Overall Length	3.56"	6"	9.13"	12.98"	N/A
Long	Socket-to-Socket Length	3.12"	5.31"	8"	11.41"	N/A
