RAM® Centered Reservoir Cover Double Ball Mount
$49.99
Centered Ball Base
The RAM-B-182U consists of a centered brake/clutch reservoir cover base, double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the reservoir cover mount to your optimum viewing position.
RAM® Centered Reservoir Cover Double Ball Mount
Overview

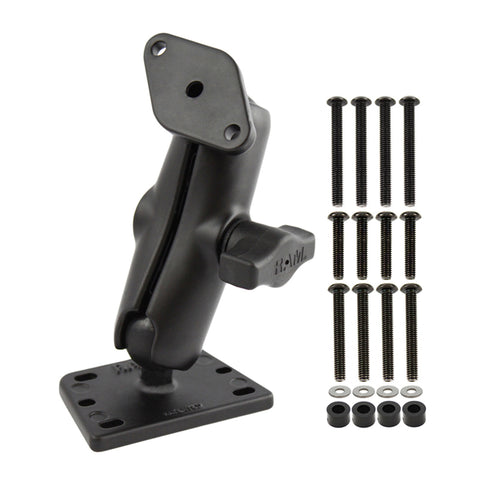

The RAM-B-182U consists of a centered brake/clutch reservoir cover base, double socket arm and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the reservoir cover mount to your optimum viewing position.
hardware included
(4) M4 x 20mm Machine Screws
(4) M4 x 30mm Machine Screws
(4) M4 x 35mm Machine Screws
(4) Nylon Spacers
(4) M4 Stainless Steel Washers
product dimensions
Overall Height: 5"
socket to socket length
3"
hole pattern
2-Hole AMPS: 1.912"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
0.66 lb
Additional Information
This mount is not compatible with the 2016 BMW R1200RT.
