RAM^® Centered Reservoir Cover Ball Base
Part #: RAM-B-345U UPC: 793442907753 Features Utilize your existing reservoir cover with this ball base for motorcycles; hardware included Compatible with any B size RAM^® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Centered Reservoir Cover Ball Base

Part #: RAM-B-345U UPC: 793442907753

Features

Utilize your existing reservoir cover with this ball base for motorcycles; hardware included
Compatible with any B size RAM^® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Centered Reservoir Cover Ball Base

Product Information

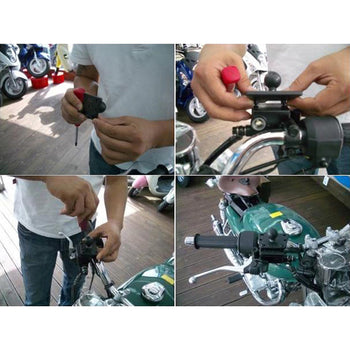

Overview	The RAM-B-345U brake/clutch reservoir cover ball base fits cleanly over your existing reservoir cover with the 1" rubber ball centered. Made of die cast aluminum with an overmolded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. This mount is not compatible with the 2016 BMW R1200RT.

Specifications

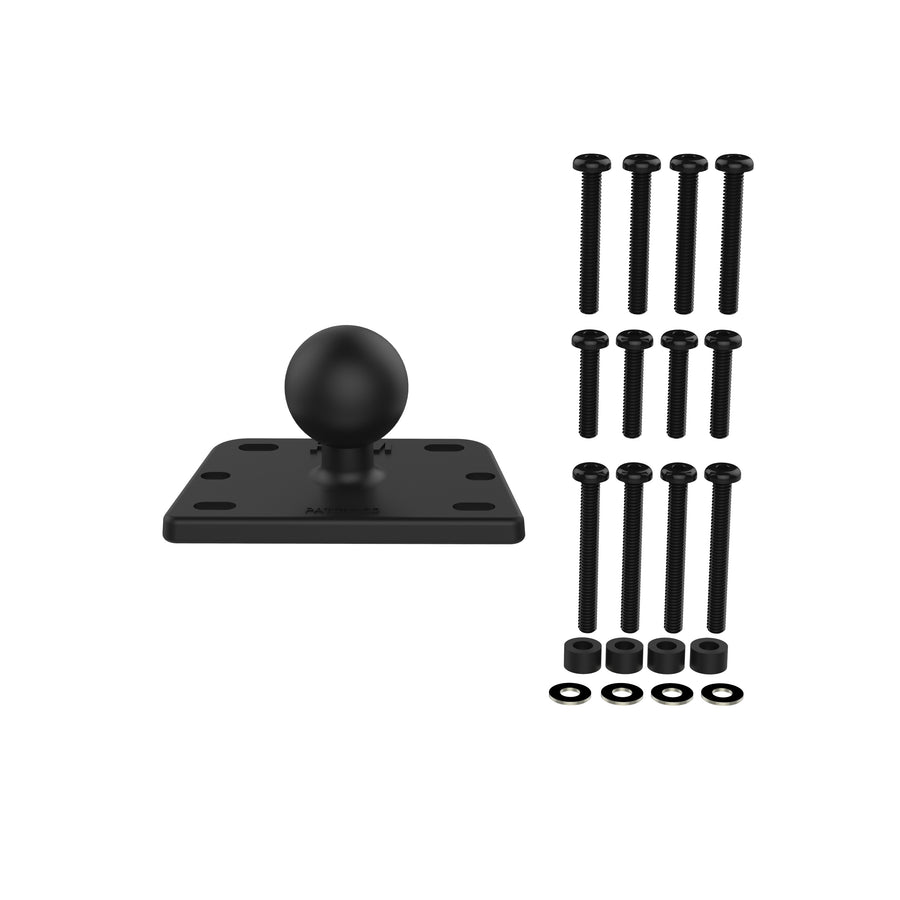

hardware included	(4) M4 x 20mm Machine Screws (4) M4 x 30mm Machine Screws (4) M4 x 35mm Machine Screws (4) M4 Flat Washers (4) .188" Nylon Spacers

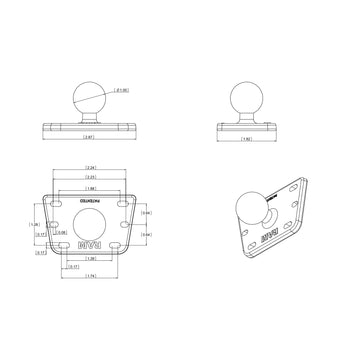

hole pattern	See Drawing
plate size	See Drawing
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.22 lb

Questions about our products? Email us for support.

RAM^® Centered Reservoir Cover Ball Base

Part#: RAM-B-345U

UPC: 793442907753

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$24.49

Options

B Size

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

The RAM-B-345U brake/clutch reservoir cover ball base fits cleanly over your existing reservoir cover with the 1" rubber ball centered. Made of die cast aluminum with an overmolded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included. This mount is not compatible with the 2016 BMW R1200RT.

Features

Utilize your existing reservoir cover with this ball base for motorcycles; hardware included
Compatible with any B size RAM^® Mounts double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

(4) M4 x 20mm Machine Screws
(4) M4 x 30mm Machine Screws
(4) M4 x 35mm Machine Screws
(4) M4 Flat Washers
(4) .188" Nylon Spacers

hole pattern:

See Drawing

plate size:

See Drawing

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

0.22 lb

Print

Instructions

Centered Brake/Clutch Reservoir Cover Base Instructions

Documents

Hole Pattern Reference Guide for Centered Reservoir Cover Base

On Road Catalog

Questions & Answers

Have a Question?

Ask a Question

fits 2014 Harley Davidson FLHXS?

I would suggest clicking the Resources Tab and taking a look at the drawing of the Centered Reservoir Cover Ball. With this you will be able to compare your hole patterns to confirm if this with work on your 2014 Harley Davidson FLHXS
