RAM® Brake/Clutch Reservoir Mount for TomTom Rider 2 + More - Medium
Overview

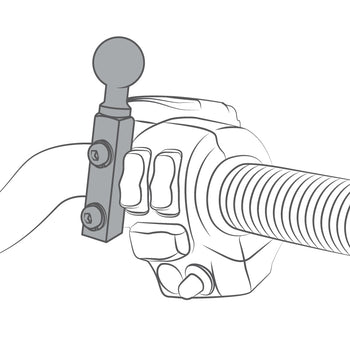

The RAM-B-174-TOM1U consists of a hardware for mounting to both brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter, double socket arm and custom TomTom base adapter. The mounting hardware for brake/clutch reservoirs include both standard and metric mounting bolts. The custom TomTom adapter base connects to the back of the factory cradle that is included with the purchase of the TomTom Rider 2/Urban Rider. The screws that are included with the RAM-B-174-TOM1U match up with the threads on the back of the RIDER 2/Urban Rider. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

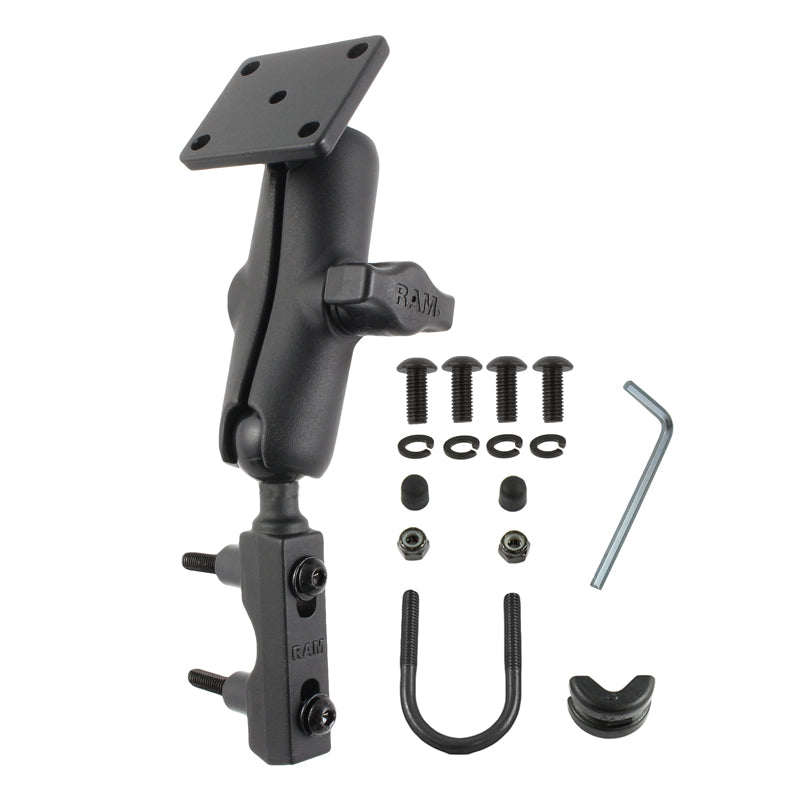

hardware included:
(4) M5 x 12mm Machine Screws
(4) M5 Stainless Steel Lock Washers
(1) M3 Hex Key Wrench
(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nyloc Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range:
.5" - 1.25" diameter
socket to socket length:
3"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
0.76 lb
