RAM® Level Cup™ XL 32oz Drink Holder with Brake/Clutch Reservoir Base

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® Level Cup^™ XL 32oz Drink Holder with Brake/Clutch Reservoir Base
Part #: RAM-B-174-A-417U UPC: 793442952982 Patented

Product Information

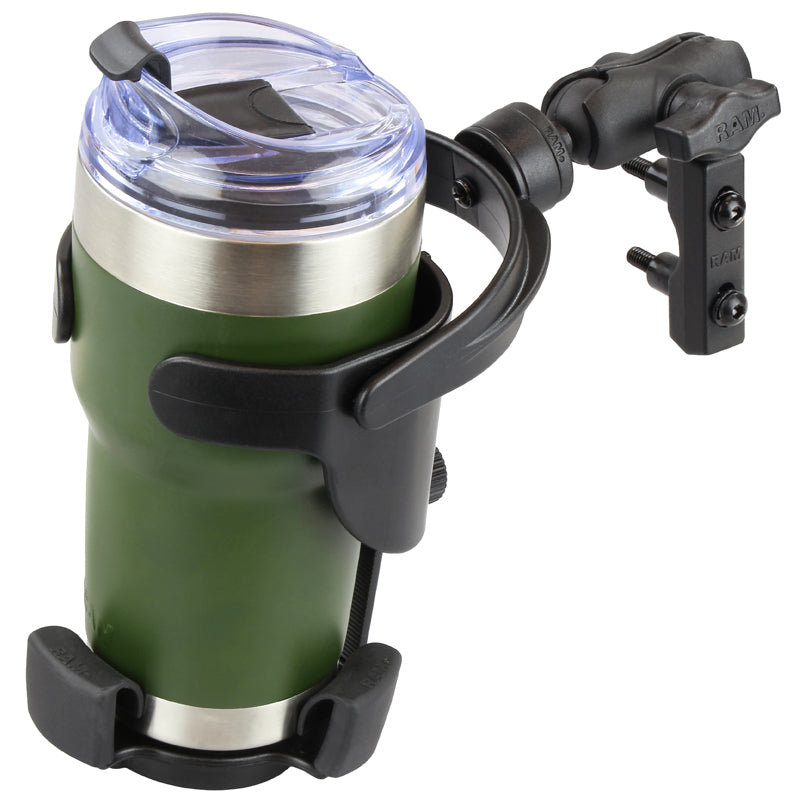

Overview	Designed for bigger insulated cups, plastic water bottles or even your reliable steel coffee cup, the Level Cup XL keeps your drink upright, regardless of the conditions. This kit includes a short arm and a combination base that attaches to rails or brake/clutch reservoirs on motorcycles and ATVs. The mounting base can accommodate rails from .5” through 1.25” and most standard handlebar sizes. The oversized opening cradles the biggest of gulps and the adjustable bottom piece moves up and down to accommodate taller cups. The rubber feet flex to fit various size cups as well. RAM^® Mounts has refined the self-leveling action to keep your cups full.

Product Information

Overview

Designed for bigger insulated cups, plastic water bottles or even your reliable steel coffee cup, the Level Cup XL keeps your drink upright, regardless of the conditions. This kit includes a short arm and a combination base that attaches to rails or brake/clutch reservoirs on motorcycles and ATVs. The mounting base can accommodate rails from .5” through 1.25” and most standard handlebar sizes. The oversized opening cradles the biggest of gulps and the adjustable bottom piece moves up and down to accommodate taller cups. The rubber feet flex to fit various size cups as well. RAM^® Mounts has refined the self-leveling action to keep your cups full.

Specifications
hardware included	(3) Rubber Support Fins (1) Glue Tube for Rubber Fins (2) M6 x 55mm Hex Bolts (2) #1/4-20 x 2" Hex Bolts (2) 1/4"-20 x 2.5" Hex Bolts (2) 1/2" Spacers (2) 1/4" Split Lock Washers (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
drink size	12-32 oz
clamp range	.5" - 1.25" diameter
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
