Overview

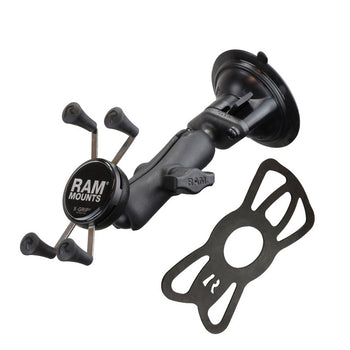

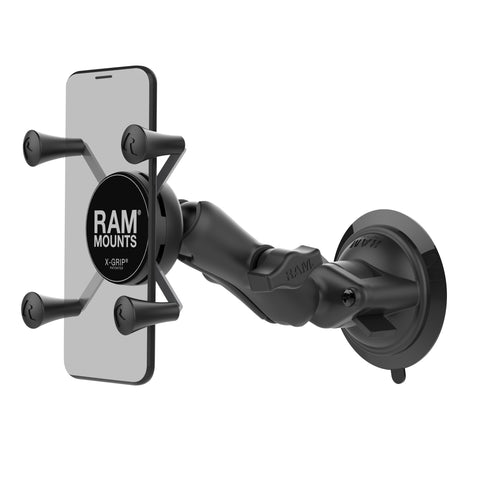

Ideal for vehicle windshields, the RAM-B-166-UN7U consists of a 3.3" diameter RAM® Twist-Lock™ suction cup base, medium length double socket arm, and the popular spring-loaded RAM® X-Grip® phone holder. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, this version of the RAM® X-Grip® fits phones ranging from 1.87" to 3.25" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.
Features

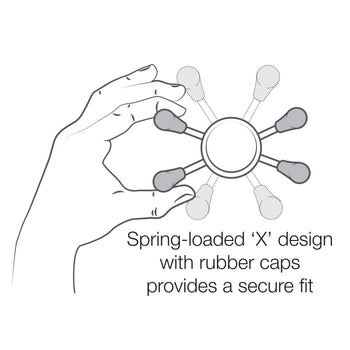

- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use

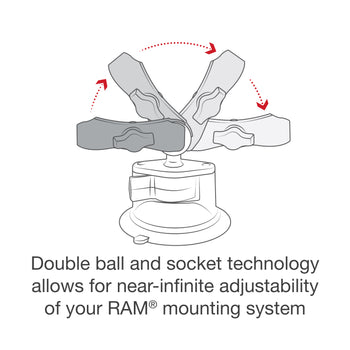

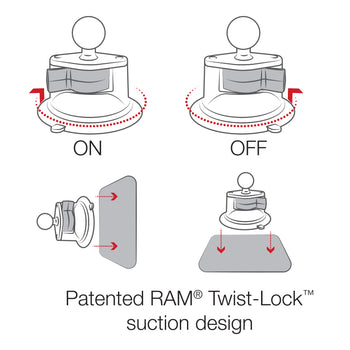

- Includes RAM® Twist-Lock™ suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty*
hardware included:
Assembly Hardware
(1) Optional Tether
(1) Glue Tube for Rubber Caps

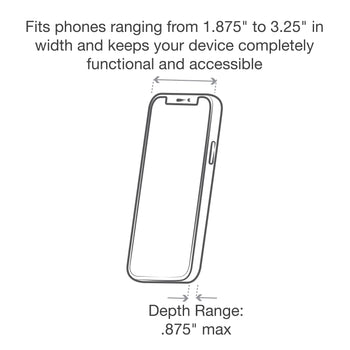

holder dimensions:
Width Range: 1.875" - 3.25"
Depth Range: .875" max

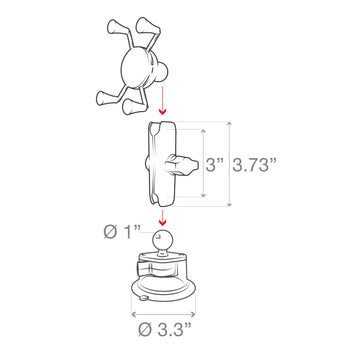

suction size:
3.3" Diameter
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.77 lb
Additional Information:
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.
*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
Instructions
Documents
Questions & Answers
Have a Question?
-
I don't see my phone listed in the compatibility section for this cradle. How can I make sure my tablet is compatible before placing an order?
You can find a list of compatible dimensions for this holder in the product information section. If you want to make sure your tablet will fit in this holder you can measure your tablet to make sure it falls within the compatible dimensions.
-
What surfaces is this suction cup compatible with?
Suction cups work by creating a vacuum, so they require an extremely smooth surface. If the surface is textured at all air can get in and the suction cup with loose grip. Suction cup mounts work best against windows and highly polished metal surfaces.
-
Would a phone with a pop socket still work in the x-grip?
No, this will not work with the pop socket; you would need to remove that to use this mount.
-
I noticed my phone can be rotated back and forth about 15 degrees when it is in the X-Grip. Is that normal?

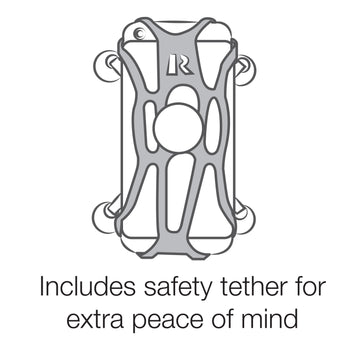

That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
-
Will this work in extreme cold? I live in Alaska and other brands loose their suction when its cold outside and fall off my windshield.
Dramatic temperature swings can cause the seal of the suction cup included in RAM-B-166-UN7U to fail, but if you wipe away any moisture that's collected and re-engage the cam, the suction cup shouldn't have a problem staying put. Extreme cold can cause the softer rubber of the suction cup to become brittle over time.
