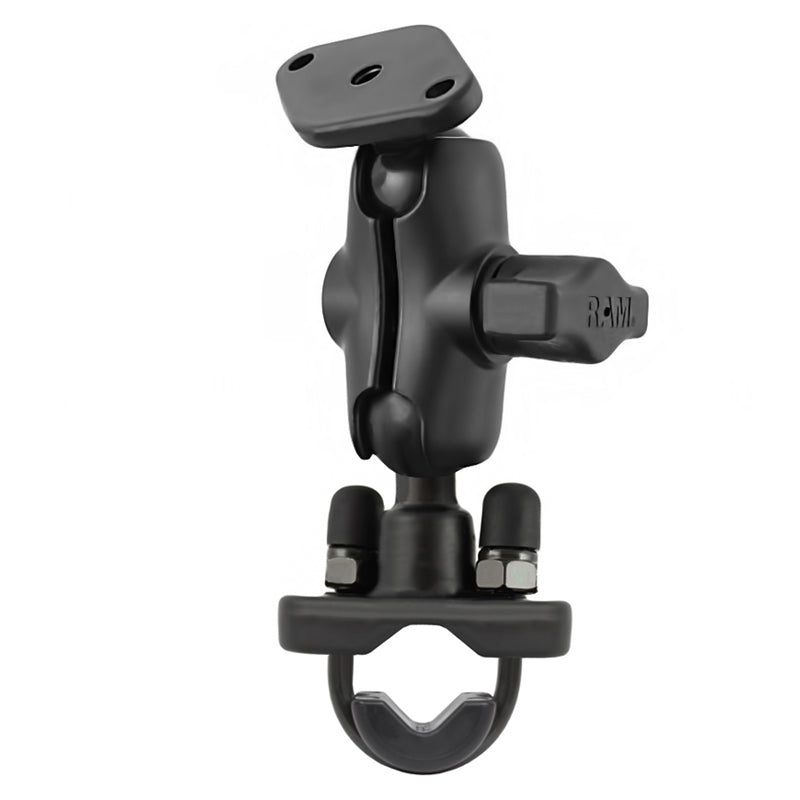

RAM^® Handlebar U-Bolt Double Ball Mount - B Size Short
Part #: RAM-B-149ZU-A UPC: 793442938450 Patented Features Includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, short length B size RAM^® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders RAM^® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Handlebar U-Bolt Double Ball Mount - B Size Short

Part #: RAM-B-149ZU-A UPC: 793442938450 Patented

Features

Includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, short length B size RAM^® double socket arm, and diamond adapter ball base for connecting to a wide variety of device holders
RAM^® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Handlebar U-Bolt Double Ball Mount - B Size Short

Product Information
Overview	The RAM-B-149ZU-A consists of a short length B-size arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter, and Diamond ball base with two point AMPS hole pattern.

Specifications
hardware included	(1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	1.75"
hole pattern	2-Hole AMPS: 1.912"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.54 lb

Questions about our products? Email us for support.

Patented

RAM^® Handlebar U-Bolt Double Ball Mount - B Size Short

Part#: RAM-B-149ZU-A

UPC: 793442938450

B Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
