RAM® Handlebar U-Bolt Mount for Garmin GPSMAP 296, 496 + More - Medium
$54.49
Medium Arm
The RAM-B-149Z-GA7U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin GPSMAP. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle garmin GPSMAP mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
RAM® Handlebar U-Bolt Mount for Garmin GPSMAP 296, 496 + More - Medium
Overview

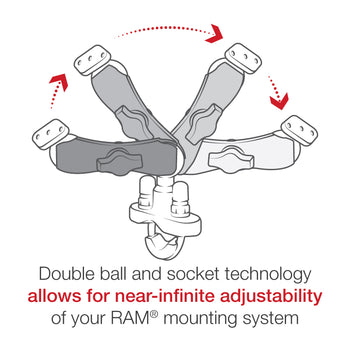

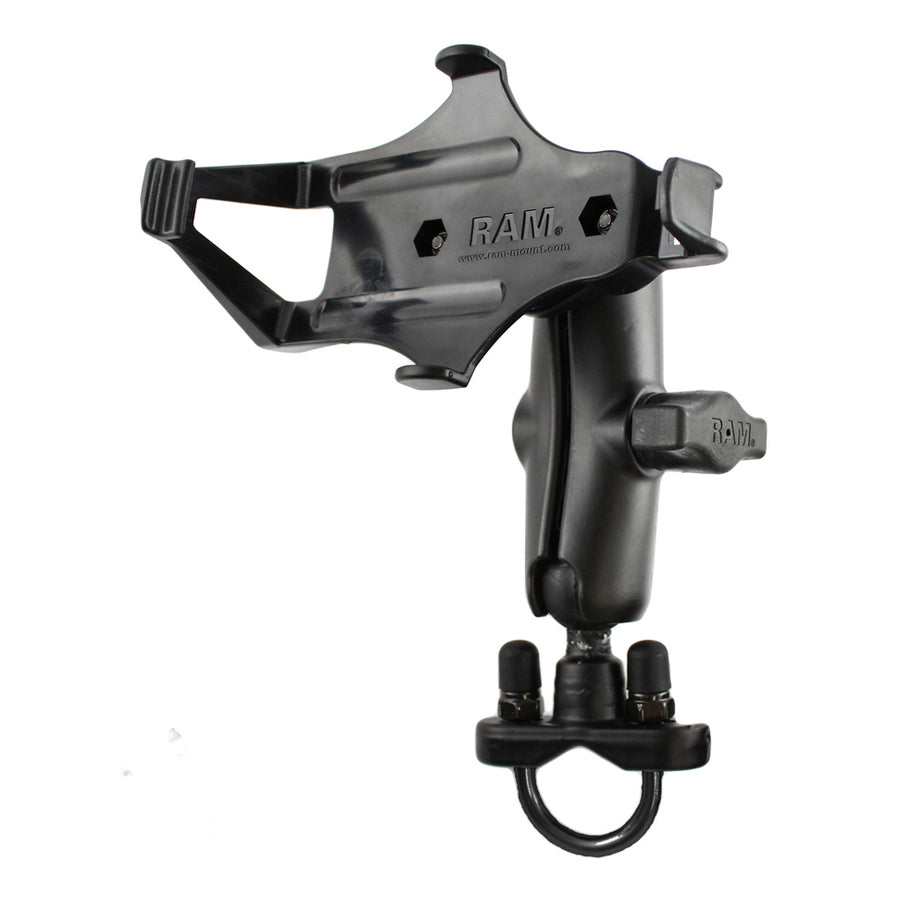

The RAM-B-149Z-GA7U consists of a double socket arm, zinc coated u-bolt base, diamond adapter base and custom high strength composite cradle for the Garmin GPSMAP. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the base and cradle. With a twist of the arm knob, you can move the motorcycle garmin GPSMAP mount to your optimum viewing position. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter.
hardware included
Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
clamp range
.5" - 1.25" diameter
socket to socket length
3"
ball size
B Size (1")
weight capacity
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials
Marine-grade aluminum
High strength composite
packaging type
Poly Bag
Weight
0.68 lb
