RAM® Handlebar U-Bolt Mount for Garmin Astro 320, GPSMAP 62 & 64 Series
Part #: RAM-B-149Z-GA41U UPC: 793442930522 Patented & Pats. Pend. Features Complete GPS mounting kit for handlebars includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, medium length B size RAM® double socket arm, diamond base ball adapter, and form-fit GPS cradle RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM® Handlebar U-Bolt Mount for Garmin Astro 320, GPSMAP 62 & 64 Series

Part #: RAM-B-149Z-GA41U UPC: 793442930522 Patented & Pats. Pend.

Features

Complete GPS mounting kit for handlebars includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, medium length B size RAM® double socket arm, diamond base ball adapter, and form-fit GPS cradle

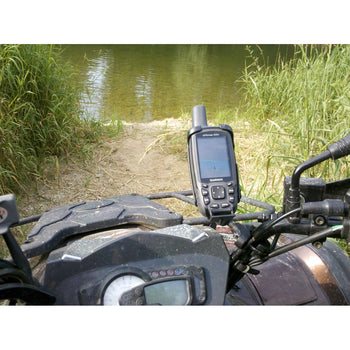

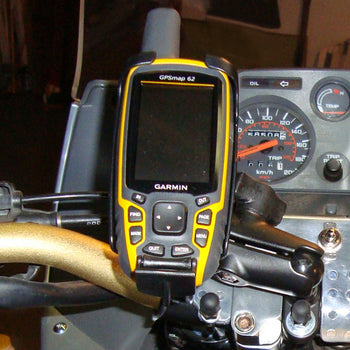

RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Handlebar U-Bolt Mount for Garmin Astro 320, GPSMAP 62 & 64 Series

Product Information

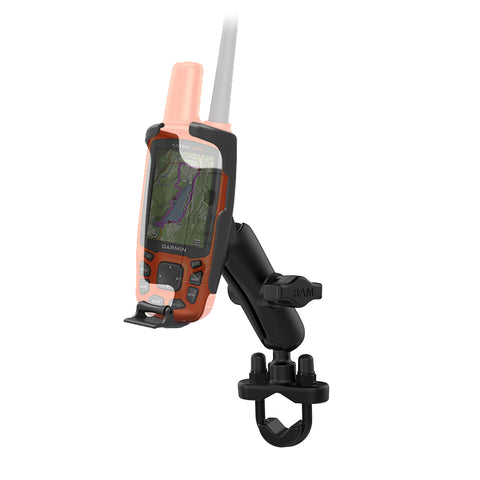

Overview	The RAM-B-149Z-GA41U consists of a zinc-coated U-bolt base, medium length double socket arm, and high-strength composite cradle with diamond ball base. Included in this kit is hardware that will accommodate rails from 0.5" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the U-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a B size 1" rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability and ideal viewing angles.

Product Information

Overview

The RAM-B-149Z-GA41U consists of a zinc-coated U-bolt base, medium length double socket arm, and high-strength composite cradle with diamond ball base. Included in this kit is hardware that will accommodate rails from 0.5" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the U-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a B size 1" rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability and ideal viewing angles.

Specifications
hardware included	Assembly Hardware (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nylock Nuts (2) Rubber Caps (1) U-Bolt Spacer
clamp range	.5" - 1.25" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.75 lb

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® Handlebar U-Bolt Mount for Garmin Astro 320, GPSMAP 62 & 64 Series

Part#: RAM-B-149Z-GA41U

UPC: 793442930522

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

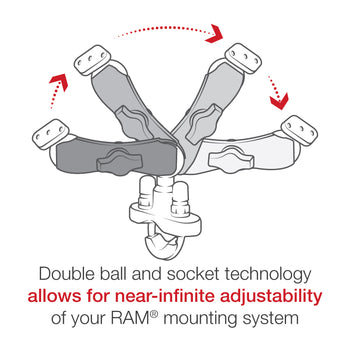

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 3.73"	Overall Length 5.69"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$54.99

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 3.73"	Overall Length 5.69"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Complete GPS mounting kit for handlebars includes zinc-coated U-bolt base that accommodates rails from .5" to 1.25" in diameter, medium length B size RAM® double socket arm, diamond base ball adapter, and form-fit GPS cradle
RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer
