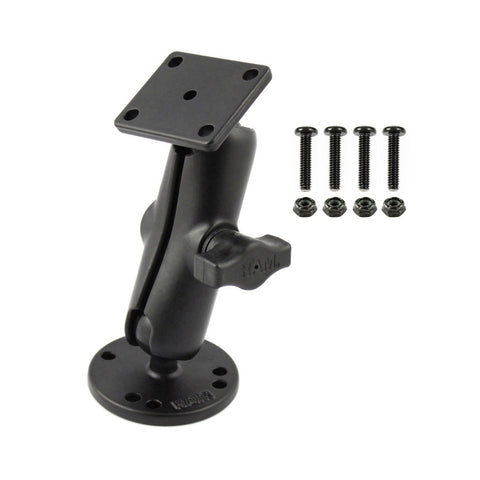

RAM® Drill-Down Double Ball Mount with Hardware for Garmin GPSMAP Series | |
---|---|
Part #:
RAM-B-139-G4U
UPC:
793442916991
|
![]() |
Product Information | |
---|---|
Overview | Simply choose your preferred mounting location and the possibilities become endless with the Garmin GPSMAP Flat Surface Mount. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials insure your Garmin GPSMAP is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device. |
Specifications | |
---|---|
hardware included | (3) #8-32 x 5/8" Machine Screws (3) #8-32 Nylock Nuts |
product dimensions | Overall Height: 5" |
socket to socket length | 3" |
hole pattern | Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter Rectangular Plate: 4-Hole AMPS: 1.181" x 1.496" |
plate size | 2.5" Diameter |
ball size | B Size (1") |
weight capacity | Standard Use: 2 lbs Heavy-Duty Use: 1 lb |
materials | Marine-grade aluminum |
packaging type | Poly Bag |
Weight | 0.58 lb |


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Garmin
Striker 4
Striker 4dv
Striker Plus 4cv
Striker Vivid 4cv
echo 100
echo 150
echo 300c
ECHOMAP Plus 42cv
ECHOMAP Plus 43cv
ECHOMAP Plus 44cv
ECHOMAP Plus 45cv
ECHOMAP UHD2 6"


The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size
Holds .5 lbs.
Trail Cameras

B Size
Holds 2 lbs.
Phones, Action Cameras, Light Duty Tablets

C Size
Holds 4 lbs.
Fishfinders, Heavy Duty Tablets

D Size
Holds 6 lbs.
Heavy Monitors

E Size
Holds 15 lbs.
Heavy Monitors
The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.
Size | A Size | B Size | C Size | D Size | E Size |
---|---|---|---|---|---|
Short Arm | Overall Length N/A |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 5.69" |
Overall Length 5.69" |
Socket-to-Socket Length N/A |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 4.66" |
|
Medium Arm | Overall Length 2.42" |
Overall Length 3.73" |
Overall Length 5.69" |
Overall Length 8.44" |
Overall Length 12.63" |
Socket-to-Socket Length 1.75" |
Socket-to-Socket Length 3" |
Socket-to-Socket Length 4.66" |
Socket-to-Socket Length 6.88" |
Socket-to-Socket Length 9.88" |
|
Long Arm | Overall Length 6" |
Overall Length 6" |
Overall Length 9.13" |
Overall Length 12.98" |
Overall Length N/A |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 5.31" |
Socket-to-Socket Length 8" |
Socket-to-Socket Length 11.41" |
Socket-to-Socket Length N/A |
Compatible Devices
Garmin
Striker 4
Striker 4dv
Striker Plus 4cv
Striker Vivid 4cv
echo 100
echo 150
echo 300c
ECHOMAP Plus 42cv
ECHOMAP Plus 43cv
ECHOMAP Plus 44cv
ECHOMAP Plus 45cv
ECHOMAP UHD2 6"

Get a notification as soon as this product is available by signing up below!
Thank you for your interest in RAM-B-139-G4U!
We'll email you once the item is available.
Overview
Simply choose your preferred mounting location and the possibilities become endless with the Garmin GPSMAP Flat Surface Mount. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials insure your Garmin GPSMAP is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device.
hardware included:
(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts
product dimensions:
Overall Height: 5"
socket to socket length:
3"
hole pattern:
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
Rectangular Plate: 4-Hole AMPS: 1.181" x 1.496"
plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
0.58 lb
