$78.99
Print Details

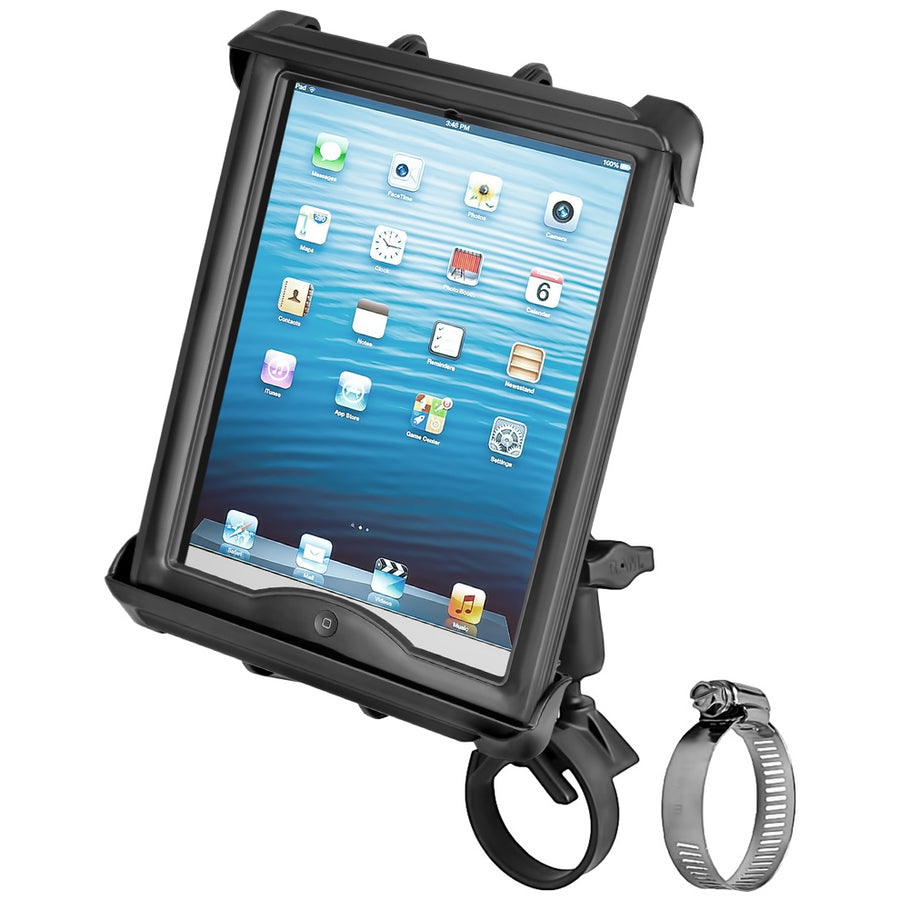

RAM® Tab-Tite™ Mount with Strap Hose Clamp for iPad with Case + More
Part#:RAM-B-108-TAB8U UPC:793442939532 Patented

Overview

The RAM-B-108-TAB8U consists of a V-Shape base, metal clamp straps, double socket arm, round base adapter and Tab-Tite™ universal clamping cradle. The V-Shape base accommodates rails from 1.0" to a maximum of 2.1" in diameter. The RAM-B-108-TAB8 is an alternative mounting base for Beechcraft airplanes with a “throw over yoke”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded Tab-Tite™ cradle makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.

hardware included

Assembly Hardware
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

holder dimensions

Height Range: 9" - 11.5"
Width Range: 6.38" - 8.31"
Depth Range: .13" - 1.12"

clamp range

1" - 2.1" diameter

socket to socket length

3"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum
High strength composite

packaging type

Poly Bag

Weight

1.3 lb
