RAM® Double Ball Strap Hose Clamp Mount with Round Plate - Long

Part#: RAM-B-108-C
UPC: 793442937514

Kit Components

Previous Slide Next Slide
$66.49

Size Guide

Arm lengths
Short, medium, and long double socket arms compared side by side. This product uses a Long arm

The double socket arm clamps over two balls — one on the base and one on your device holder. Arm length sets your reach: short arms are the most stable, while longer arms give you more freedom to position the device.

RAM Mounts overall and socket-to-socket arm lengths by ball size
Arm Length Measurement A Size B Size — this product's ball size C Size D Size E Size
Short Overall Length N/A 2.42" 3.56" 5.69" 5.69"
Socket-to-Socket Length N/A 1.75" 2.5" 4.66" 4.66"
Medium Overall Length 2.42" 3.73" 5.69" 8.44" 12.63"
Socket-to-Socket Length 1.75" 3" 4.66" 6.88" 9.88"
Long Overall Length 3.56" 6" — this product 9.13" 12.98" N/A
Socket-to-Socket Length 3.12" 5.31" 8" 11.41" N/A

Overview

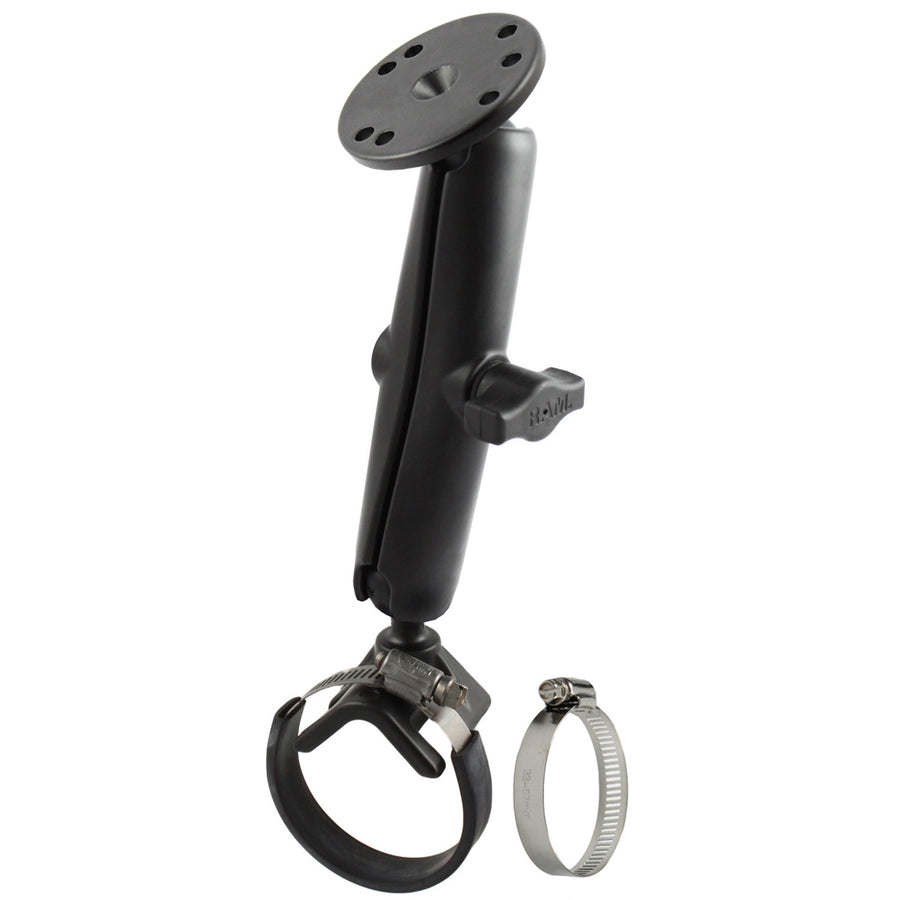

The RAM-B-108-C consists of a 1" diameter rubber ball connected at a right angle to a v-shaped base, LONG length double socket arm and 2.5" base that contains the universal AMPs hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

hardware included:

(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

clamp range:

1" - 2.1" diameter

socket to socket length:

5.31"

hole pattern:

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum

packaging type:

Retail Bag

Weight:

1.1 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
