$72.49
Diamond Plate

Features

  • 2.43" x 1.31" diamond plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes 4" clamping base for posts and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

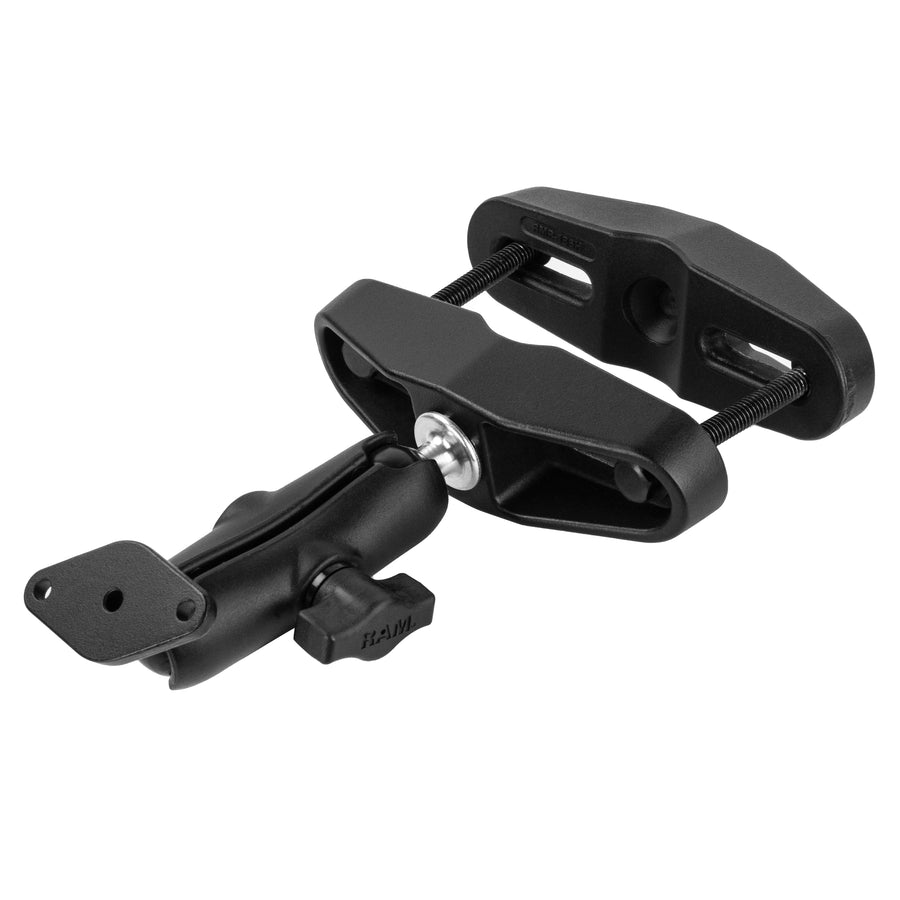

RAM® Universal Post Clamp Mount with Diamond Plate - B Size Medium Arm
Part#:RAM-B-102U-247 UPC:793442018138
The RAM® Universal Post Clamp Mount with Diamond Plate - B Size Medium Arm (RAM-B-102U-247) is a mounting solution designed to secure small handheld devices to forklifts. This kit consists of one (1) double socket B size medium arm, one (1) diamond plate with B size ball, and one (1) square post clamp. The square post clamp will wrap around a square post with a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. The RAM® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.

hardware included

Assembly Hardware

clamp range

1.75" - 4" width

socket to socket length

3"

hole pattern

2-Hole AMPS: 1.912"

plate size

2.43" x 1.31"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

1.7 lb

Components

RAM® Diamond Ball Base - B Size RAM-B-238U $9.49
RAM® Double Socket Arm - B Size Medium RAM-B-201U $19.49

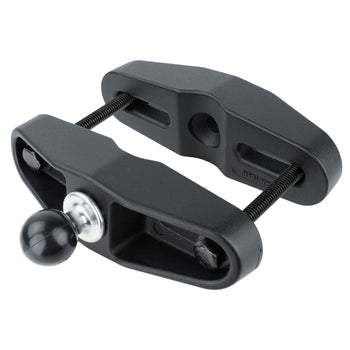

RAM® Square Post Clamp Base for Posts 1.75" - 4" Wide - B Size RAM-B-247U $51.99
