RAM® Square Post Clamp Base for Posts 1.75" - 4" Wide - B Size
Overview

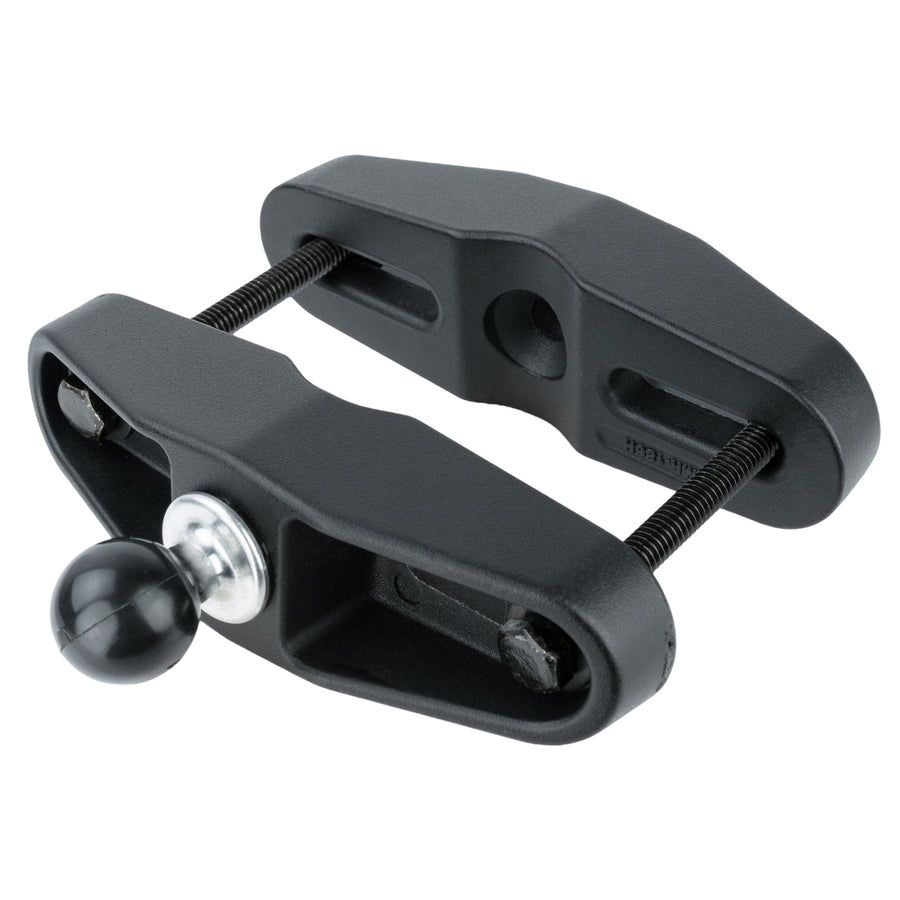

This RAM® Square Post Clamp Base (RAM-B-247U) is a clamp base with B size 1" rubber ball that will connect to square posts ranging from 1.75" to 4" in width. Ideal for forklifts, the slotted holes on this base make this variation the most universal clamp base option; recommended for small devices such as phones, cameras, handheld PCs, and more.
Features
- Clamping base ideal for square posts from 1.75" - 4" in width; adjustable and easily removable
- Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
Assembly Hardware
(2) 5/16"-18 x 3.5" Hex Bolts
(2) 5/16"-18 Nuts
(2) Flat Washers
(2) Lock Washers
(2) Rubber Caps
clamp range:
1.75" - 4" width
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
Marine-grade aluminum
packaging type:
Poly Bag
Weight:
1.35 lb
Return Policy:
All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
QUESTIONS & ANSWERS
Have a Question?
-
Do you have anything wider than 4" wide? What is the width of the top and bottom clamp parts themselves? Thanks!
No we do not have the 5" with the B-Size ball. If you would like to look at the 5" with C-Size ball the part number is RAM-247U-5.
Please reach out to us at Support@rammount.com for technical drawing/measurements.
