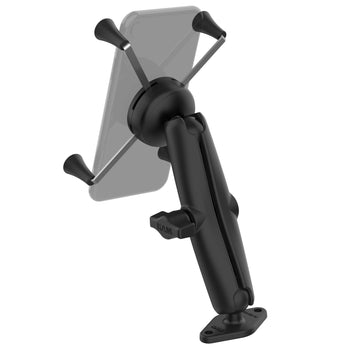

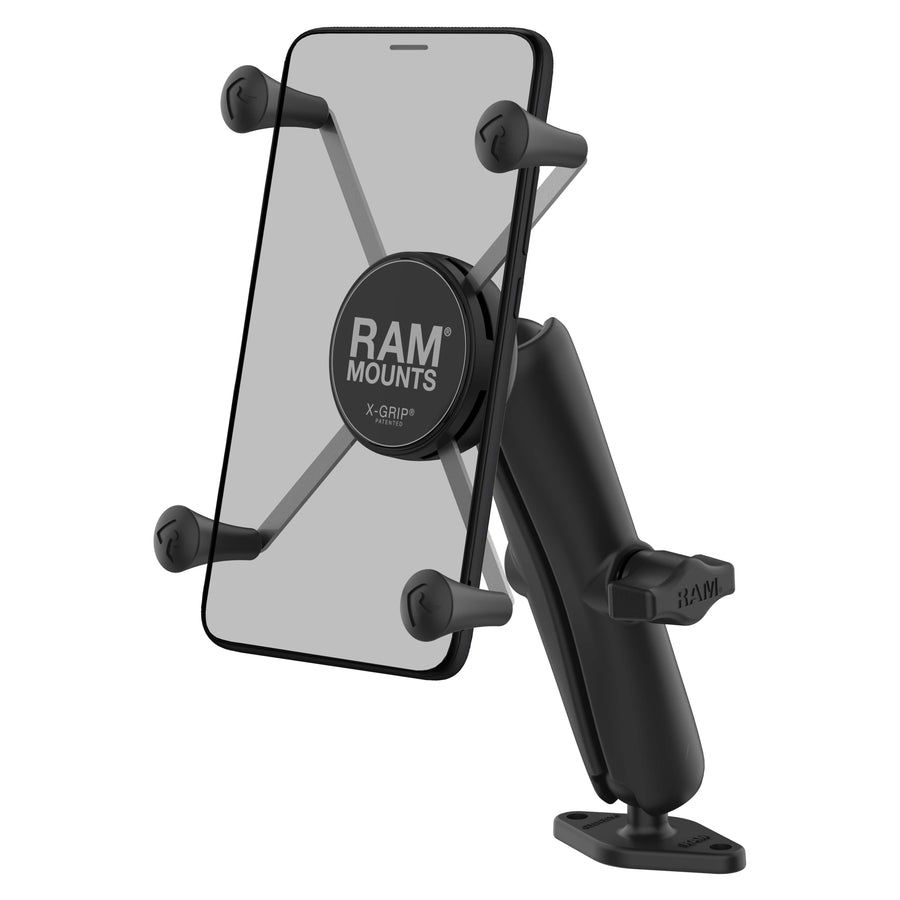

RAM® X-Grip® Large Phone Mount with Diamond Base - Long Arm
Part #: RAM-B-102-C-UN10U UPC: 793442029837 Patented Features Universal X-Grip® fits large phones with or without a case Diamond base secures to any flat surface and RAM® components with 2-hole AMPS pattern Ball & socket design enables infinite adjustability Includes safety tether for rugged use Backed by a lifetime warranty

Product Information

Overview

The RAM® X-Grip® Large Phone Mount with Diamond Base - Long Arm (RAM-B-102-C-UN10U) is a complete, ready-to-use solution for securely mounting your phone to a flat surface.The spring-loaded RAM® X-Grip® cradle expands and contracts to provide a firm hold on large phones, ensuring a snug and secure fit without the need for a case-specific adapter. Its universal design supports a wide range of devices—making it a one-size-fits-all solution for your current phone, your future upgrade, and even your friend’s device. Included in the kit is the RAM® diamond ball base that features the industry-standard AMPS hole pattern, allowing you to mount it to any flat surface. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle—and helps extend the life of your phone by providing shock and vibration damping, even in rugged conditions. Built for both everyday and extreme conditions, the RAM® X-Grip® also includes a safety tether recommended for outdoor and rugged applications. The RAM® X-Grip® supports most handheld devices that fall within the dimensions listed below—be sure to check your device’s measurements, including any case or sleeve, to ensure compatibility.

Specifications

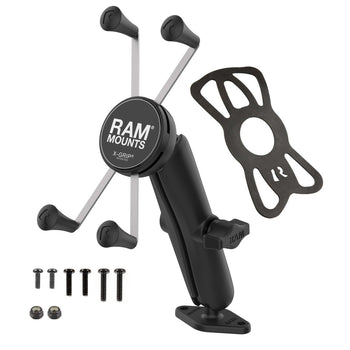

hardware included	(1) Optional Tether (1) Glue Tube for Rubber Caps (2) #8-32 x 1/2" Machine Screws (2) #8-32 x 5/8" Machine Screws (2) #8-32 x .75" Screws (2) #8-32 Nylock Nuts

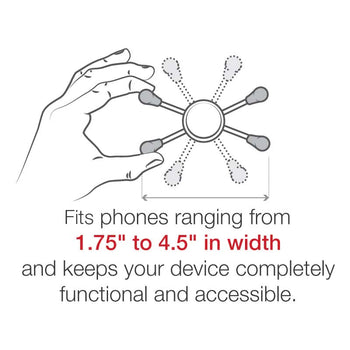

holder dimensions	Width Range: 1.75" - 4.5" Depth Range: .875" max
socket to socket length	5.31"
hole pattern	2-Hole AMPS: 1.912"
plate size	2.43" x 1.31"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite Stainless steel
packaging type	Poly Bag
Weight	0.92 lb
Additional Information	Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

Patented

RAM® X-Grip® Large Phone Mount with Diamond Base - Long Arm

Name: RAM® X-Grip® Large Phone Mount with Diamond Base - Long Arm
Brand: RAM Mounts
SKU: RAM-B-102-C-UN10U
Price: 82.49 USD
Availability: InStock

Part#: RAM-B-102-C-UN10U

UPC: 793442029837

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
