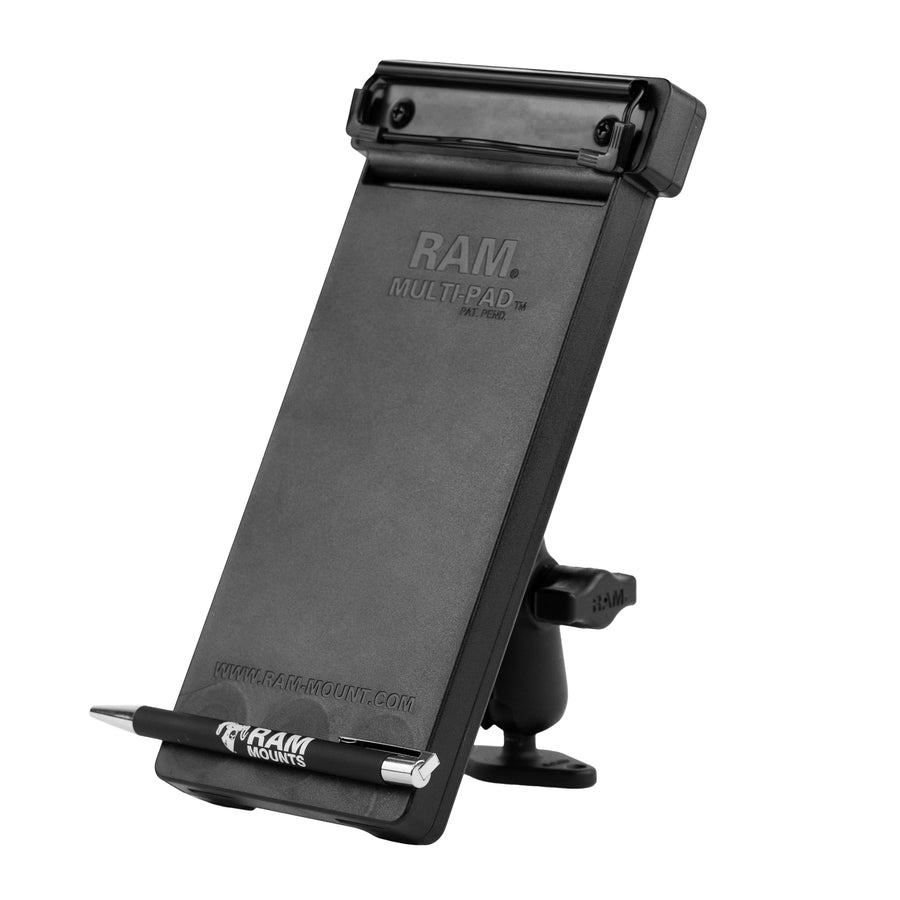

RAM® Multi-Pad™ Double Ball Mount with Diamond Base

Part#: RAM-B-102-MP1U
UPC: 793442921957

Kit Components

Previous Slide Next Slide
$100.99

Overview

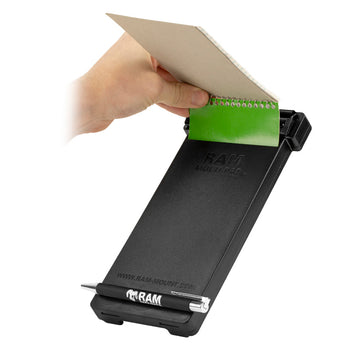

The new RAM Multi-Pad™ is the perfect product to keep your busy life organized. Easily mounted in a variety of locations and ideal for your car or truck, the RAM Multi-Pad™ has many features you'd expect and others that will surprise you. With RAM in the name, you know the RAM Multi-Pad™ can be easily attached to a wide variety of RAM mounting solutions. With several mounting points and integrated magnets for holding your ferrous metal pen securely without the need for clips, the RAM Multi-Pad™ is ready to get to work for you. The Multi-Pad™ can attach to the RAM Tough-Tray™, universal laptop holder.

hardware included:

Assembly Hardware
(2) #10-24 x 5/8" Machine Screws
(2) #10-24 Nyloc Nuts

socket to socket length:

3"

hole pattern:

2-Hole AMPS: 1.912"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.35 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Instructions

Documents

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
RAM® Multi-Pad™ Double Ball Mount with Diamond Base
$100.99

Size Guide

Ball sizes
  • A Size 0.56" ball
  • B Size — this product 1" ball
  • C Size 1.5" ball
  • D Size 2.25" ball
  • E Size 3.38" ball

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size Ball Diameter Max Load* Best For
A0.56" (14.3 mm)0.5 lbAction cameras and other ultra-light devices
B — this product1" (25.4 mm)2 lbsPhones, GPS units, and small tablets — the most common size
C1.5" (38.1 mm)4 lbsLarge tablets, fish finders, and rougher rides
D2.25" (57.2 mm)6 lbsRugged tablets, laptops, and heavy equipment
E3.38" (85.9 mm)15 lbsLarge displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
