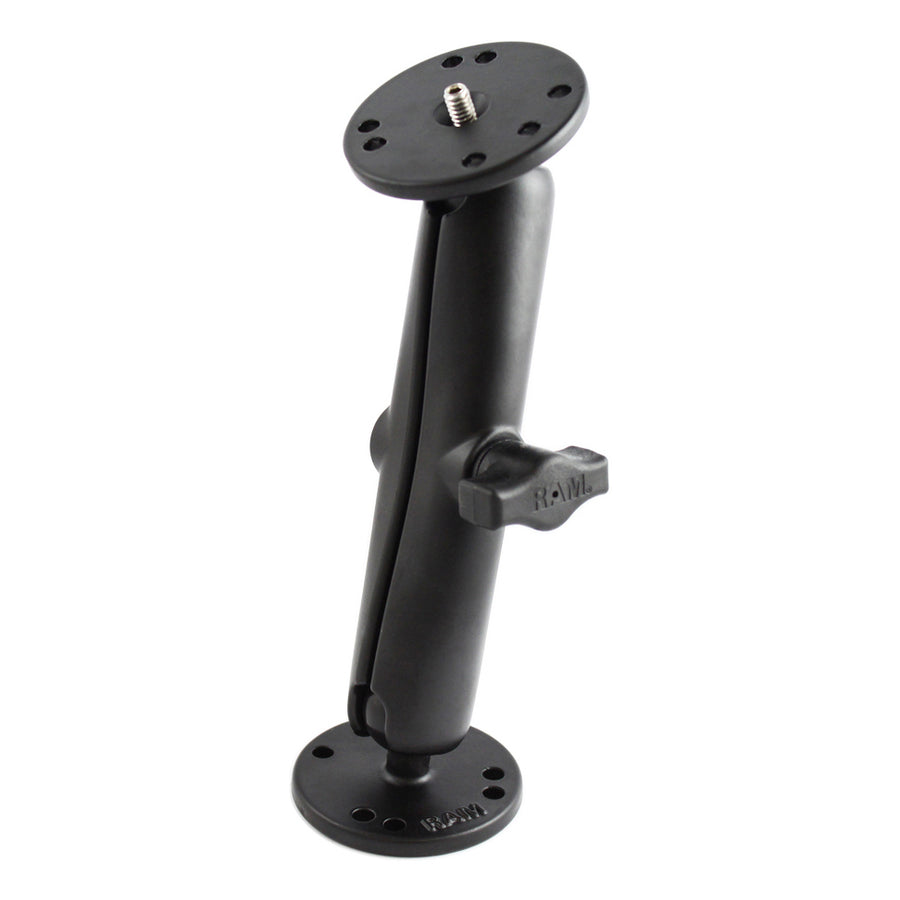

RAM® Double Ball Mount with 1/4"-20 Male Thread - B Size Long

Part #: RAM-B-101U-C-A UPC: 793442916281

Features

Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders; includes male 1/4"-20 threaded base
Includes two round ball bases and B size long length double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Product Information
Overview	The RAM-B-101U-C-A consists of a long length B-size arm with a 2.5" diameter round plate with universal AMPS hole pattern as well as a 2.5" diameter round plate with universal AMPS hole pattern and a removable 1/4"-20 threaded post.

Specifications
product dimensions	Overall Height: 7.3125"
socket to socket length	5.31"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
thread pitch	1/4"-20 x .25"
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.79 lb

RAM® Double Ball Mount with 1/4"-20 Male Thread - B Size Long

Name: RAM® Double Ball Mount with 1/4"-20 Male Thread - B Size Long
Brand: RAM Mounts
SKU: RAM-B-101U-C-A
Price: 52.99 USD
Availability: InStock

Part#: RAM-B-101U-C-A

UPC: 793442916281

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
