RAM® Double Ball Mount with 1/4"-20 Male Thread - B Size Medium

rammount.com
1-800-497-7479
sales@rammount.com

RAM® Double Ball Mount with 1/4"-20 Male Thread - B Size Medium
Part #: RAM-B-101AU UPC: 793442110160

Product Information

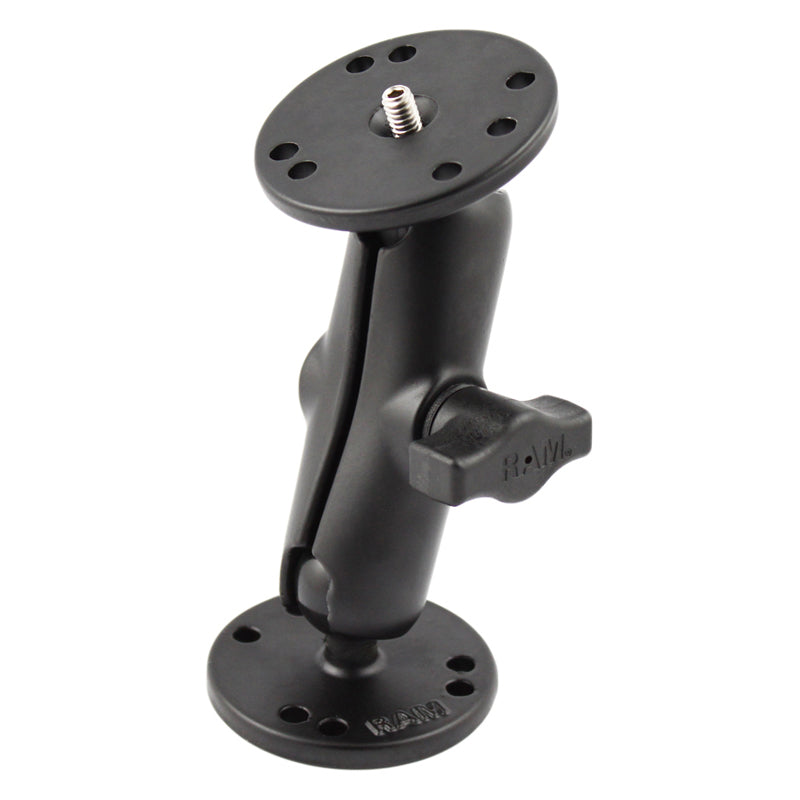

Overview	The RAM-B-101AU consists of a double socket arm, one 2.5" diameter round base with the universal AMPS hole pattern and universal camera/camcorder base. The universal camera/camcorder base consists of a 1" diameter rubber ball connected to a 2.5" diameter round base with 1/4-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

Product Information

Overview

The RAM-B-101AU consists of a double socket arm, one 2.5" diameter round base with the universal AMPS hole pattern and universal camera/camcorder base. The universal camera/camcorder base consists of a 1" diameter rubber ball connected to a 2.5" diameter round base with 1/4-20 camera thread. The male thread matches most standard camera and camcorder female threads found on the bottom of the camera. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

Specifications
product dimensions	Overall Height: 5"
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.57 lb

RAM® Double Ball Mount with 1/4"-20 Male Thread - B Size Medium

Questions about our products? Email us for support.

RAM® Double Ball Mount with 1/4"-20 Male Thread - B Size Medium

Part#: RAM-B-101AU

UPC: 793442110160

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 3.73"	Overall Length 5.69"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$42.49

Options

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes
