Patented & Pats. Pend.
RAM® X-Grip® with Tough-Claw Mount for 7"-8" Tablets - C Size Short
Part#: RAM-400-B-UN8U
UPC: 793442202087
Ball Icon C Size
Arm Icon Short Arm
$125.99

Overview

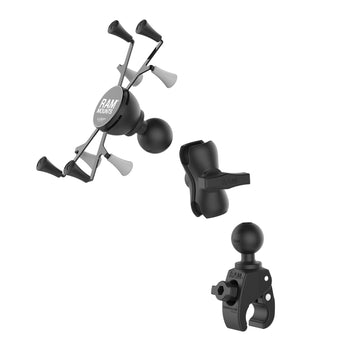

The RAM® X-Grip® with RAM® Tough-Claw Mount for 7"-8" Tablets consists of a short C size double socket arm, C size small RAM® Tough-Claw base for .625" to 1.14" diameter rails and a universal X-Grip® clamping cradle for 7"-8" tablets. The mount is designed with a C size RAM® 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for open-cockpit vehicles such as a motorcycle or ATV/UTV. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features

  • Spring-loaded 'X' design features rubber caps and sports great holding power without hiding your tablet; fits most 7"-8" tablets (check list of compatible tablets below)

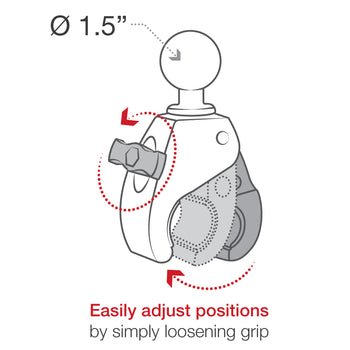

  • Includes C size small RAM® Tough-Claw base, designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

hardware included:

(1) Optional Tether
(1) Glue Tube for Rubber Caps

holder dimensions:

Width Range: 2.5" - 5.75"
Depth Range: .875" max

clamp range:

.625" - 1.14" diameter

socket to socket length:

2.5"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum
High strength composite

packaging type:

Poly Bag

Weight:

1.31 lb

Print

Documents

Questions & Answers

Have a Question?

Ask a Question
  • I noticed my tablet can be rotated back and forth about 15 degrees when it is in the X-Grip. Is that normal?

    That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.

  • Will this accommodate a Tab A7 Lite?

    Yes, this mount will support the Samsung Tab A7 Lite 8.7".
