RAM® Track Ball™ Heavy Duty Mount for weBoost
Part #: RAM-379-372437-354-TRA1U UPC: 793442014413 Features Kit includes 3/8"-24 x .375" Threaded RAM® Tough-Ball™ that screws into thread adpater of the weBoost antenna, C size short length socket arm and C size RAM® Track Ball™ to mount to a third party track system or any RAM® Tough-Track™ system The adjustability of the ball and socket technology allows the weBoost mount to collapse when not in use, and provide extended reach in tight mounting areas Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

Part #: RAM-379-372437-354-TRA1U UPC: 793442014413

Features

Kit includes 3/8"-24 x .375" Threaded RAM® Tough-Ball™ that screws into thread adpater of the weBoost antenna, C size short length socket arm and C size RAM® Track Ball™ to mount to a third party track system or any RAM® Tough-Track™ system
The adjustability of the ball and socket technology allows the weBoost mount to collapse when not in use, and provide extended reach in tight mounting areas
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM® Track Ball™ Heavy Duty Mount for weBoost

Product Information

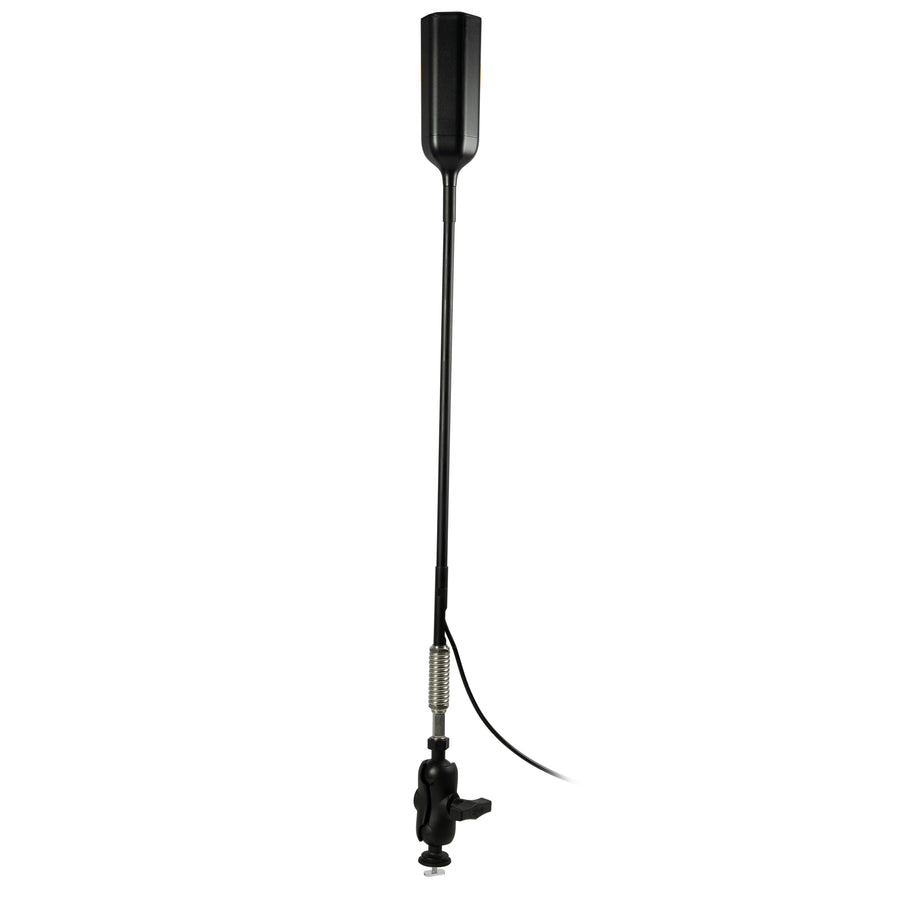

Overview	This weBoost mounting kit includes a 3/8"-24 X .375" threaded RAM® Tough-Ball™ that screws into thread adapter of the weBoost antenna, a C size short length socket arm and a C size RAM® Track Ball™ to mount to a third party track system or any RAM® Tough-Track™ system. The adjustability of the RAM® Mounts system allows you to collapse the antenna while not in use, as well as extend the reach of the weBoost antenna if mounted in a tight space. This weBoost antenna mount is compatible with the Drive Reach OTR and Drive X antennas making this the ideal mounting solution for off-road vehicles and semi-trucks.

Product Information

Overview

This weBoost mounting kit includes a 3/8"-24 X .375" threaded RAM® Tough-Ball™ that screws into thread adapter of the weBoost antenna, a C size short length socket arm and a C size RAM® Track Ball™ to mount to a third party track system or any RAM® Tough-Track™ system. The adjustability of the RAM® Mounts system allows you to collapse the antenna while not in use, as well as extend the reach of the weBoost antenna if mounted in a tight space. This weBoost antenna mount is compatible with the Drive Reach OTR and Drive X antennas making this the ideal mounting solution for off-road vehicles and semi-trucks.

Specifications
hardware included	(1) Friction Washer (1) 1/4"-20 x 7/8" T-Bolt
t bolt dimensions	.48" x .95"
socket to socket length	2.5"
thread pitch	3/8"-24 x .375"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.02 lb

Questions about our products? Email us for support.

RAM® Track Ball™ Heavy Duty Mount for weBoost

Part#: RAM-379-372437-354-TRA1U

UPC: 793442014413

C Size

Short Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
