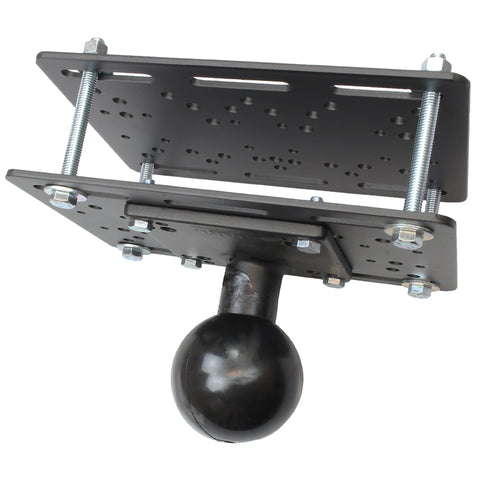

RAM® Lift Truck Overhead Guard Base with Ball - E Size
Part #: RAM-335-E-246 UPC: 793442951497

Product Information

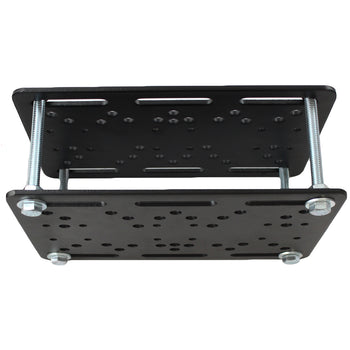

Overview	Sometimes the simplest solution makes the most sense. The new RAM Lift Truck Back-Up Mounting Plate is the ideal way to get a RAM ball attached to most any lift cage or overhead guard. Utilizing two identical plates of stamped steel with numerous common hole patterns and slots makes attachment a breeze. Up to 2 balls may be attached to the same plate for multiple applications.

Specifications
hardware included	Assembly Hardware (4) 3/8"-16 x 4" Zinc Hex Bolts (4) 3/8"-16 Zinc Hex Nuts (4) 3/8" Zinc Lock Washers (8) 3/8" Zinc Flat Washers (4) #10-24 Machine Screws (4) #10-24 Nylock Nuts

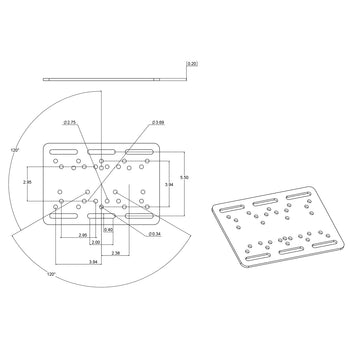

hole pattern	See Drawing
ball size	E Size (3.38")
weight capacity	Standard Use: 15 lbs Heavy-Duty Use: 10 lbs
materials	Powder coated steel Marine-grade aluminum
packaging type	Box
Weight	6.31 lb

RAM® Lift Truck Overhead Guard Base with Ball - E Size

Questions about our products? Email us for support.

RAM® Lift Truck Overhead Guard Base with Ball - E Size

Part#: RAM-335-E-246

UPC: 793442951497

E Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
