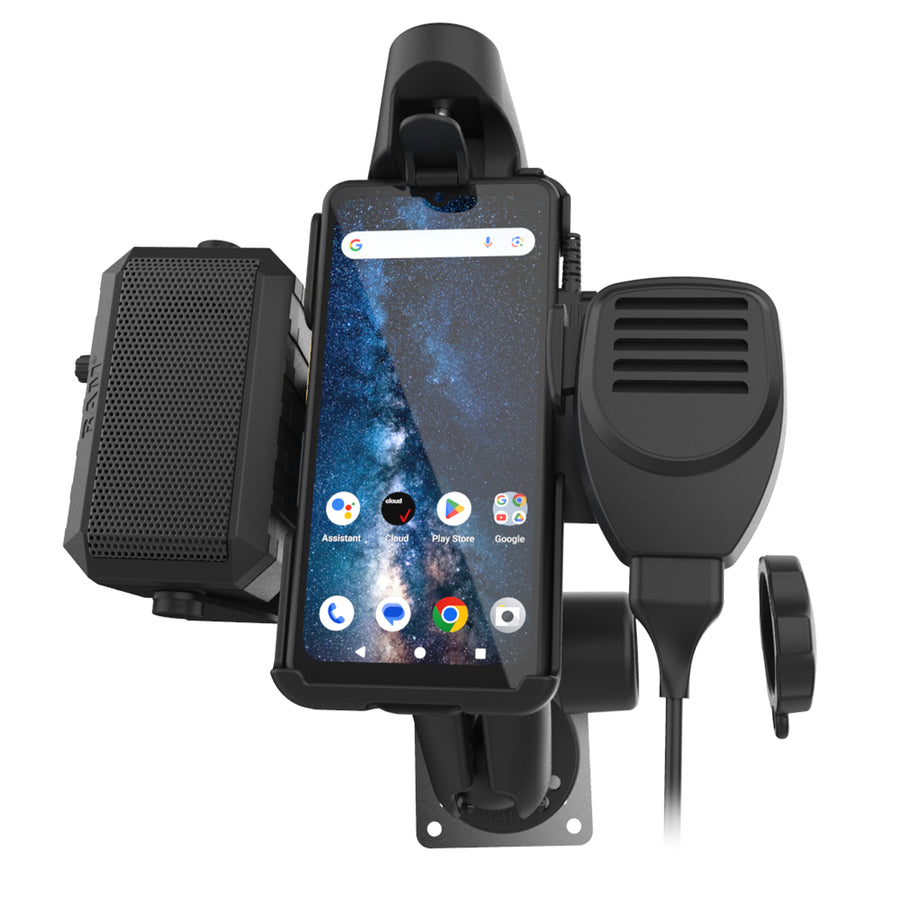

RAM® PTT Speaker & Hardwire Bundle for Sonim XP Pro
Overview

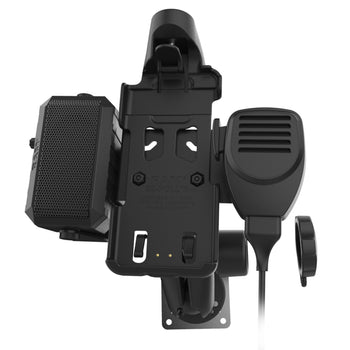

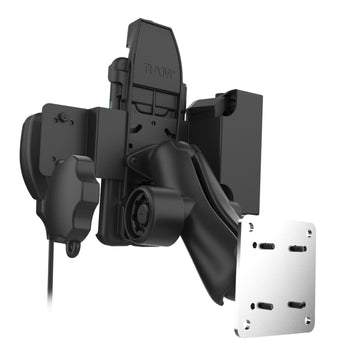

The RAM® Double Ball Mount for Sonim XP Pro with Speaker & Hardwire Bundle (RAM-138-S-SNM5PL-V7B1U) is a turn-key push-to-talk solution that will meet the demands of whatever your day brings. This kit is made of the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP Pro, double ball mount with RAM® Pin-Lock™ Security Knob, speaker, microphone, and a mounting bracket. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included USB-C to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger.
Features
- Bundle for Sonim XP Pro includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication

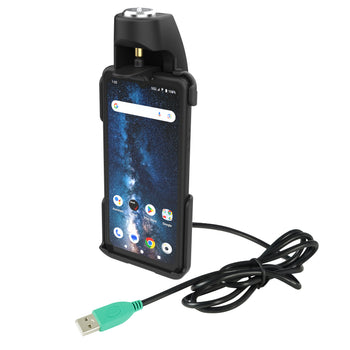

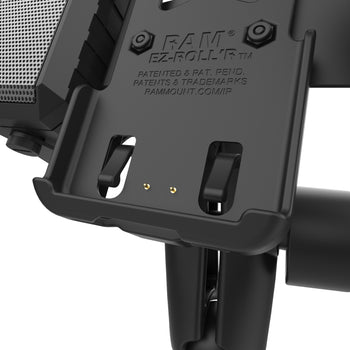

- Powered RAM® EZ-Roll'r™ form-fit dock for the Sonim XP Pro; provides charging through two integrated pogo pins and USB-A cable

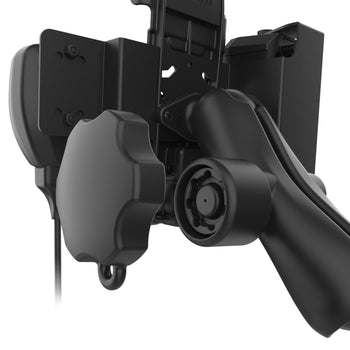

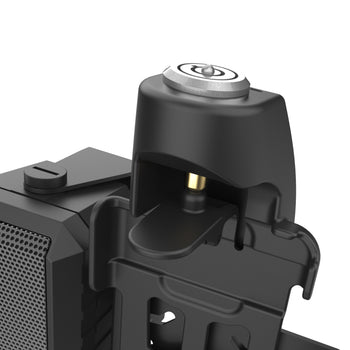

- Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
- RAM® components backed by lifetime warranty; dock and electronics backed by a 3-year warranty

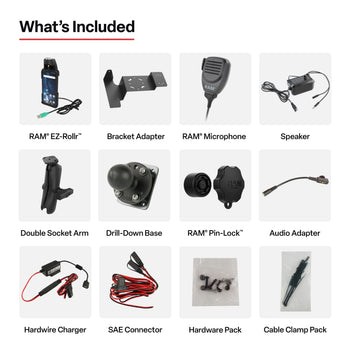

hardware included:
Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob

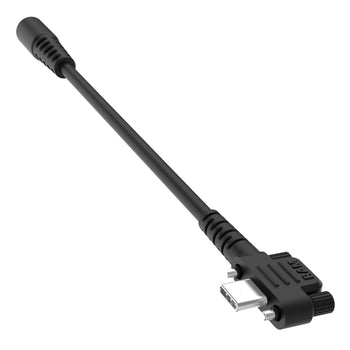

(1) USB-C to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger
speaker specifications:
Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker
socket to socket length:
4.66"
hole pattern:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size:
2.5" Diameter
ball size:
C Size (1.5")
weight capacity:
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials:
Marine-grade aluminum
High strength composite
Powder-Coated Steel
packaging type:
Poly Bag
input voltage:
10-30VDC
output voltage:
5-9VDC*
output current:
2.5A max
input connector:
Charger: Female USB Type A
input cable length:
1.2 Meters including 2 Pole Flat Marine Connector
output cable length:
.2 Meters
operating temperature:
-10°C to +70°C
storage temperature:
-40°C to +70°C
regulatory:
Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications:
E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty:
3 year warranty
Additional Information:
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
