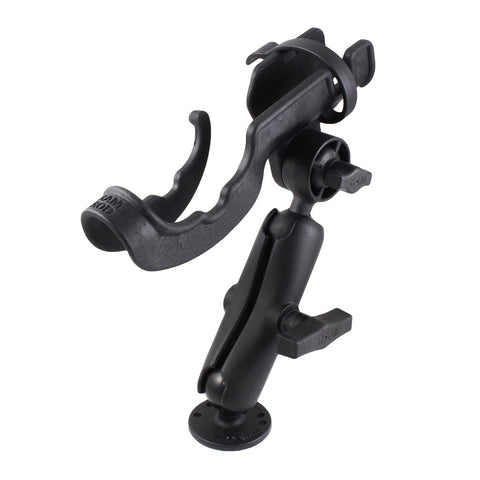

RAM ROD^® Fishing Rod Double Ball Mount for Saltwater
Part #: RAM-117SWU UPC: 793442921810 Patented

Product Information
Overview	The RAM ROD^® 2000 fishing rod holder is RAM’s original rod holder. This unique design offers quick removal of the rod when a fish is on, and features a securing flip-over bail for rod security while trolling or for use as rod storage. Utilizing two RAM patented 1.5” balls, this rod holder offers the ultimate in adjustability and versatility. Ideally suited for kayaks or traditional fishing vessels, this rod holder puts the rod and reel where you need it. Kit includes a 1.5" ball with a 2.5" diameter steel reinforced mounting base.

Product Information

Overview

The RAM ROD^® 2000 fishing rod holder is RAM’s original rod holder. This unique design offers quick removal of the rod when a fish is on, and features a securing flip-over bail for rod security while trolling or for use as rod storage. Utilizing two RAM patented 1.5” balls, this rod holder offers the ultimate in adjustability and versatility. Ideally suited for kayaks or traditional fishing vessels, this rod holder puts the rod and reel where you need it. Kit includes a 1.5" ball with a 2.5" diameter steel reinforced mounting base.

Specifications
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Powder coated steel Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.4 lb

RAM ROD<sup>®</sup> Fishing Rod Double Ball Mount for Saltwater

Questions about our products? Email us for support.

Patented

RAM ROD^® Fishing Rod Double Ball Mount for Saltwater

Part#: RAM-117SWU

UPC: 793442921810

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
