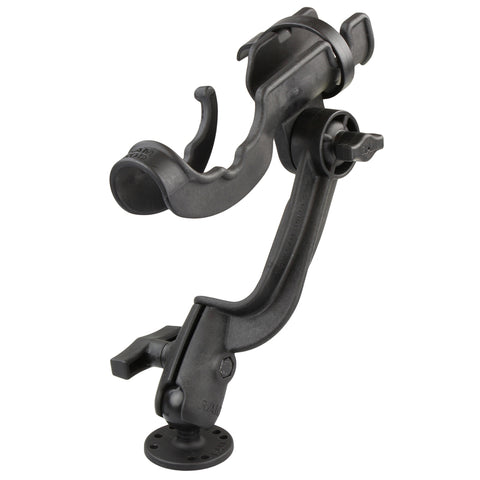

RAM ROD^® Fishing Rod Holder with Revolution Ratchet/Socket Mount
Part #: RAM-114-RBU UPC: 793442909214 Patented

Product Information
Overview	The RAM-114-RBU consists of the RAM ROD^® 2000 fishing rod holder, ratchet arm with single open socket and 2.5" diameter round base that contains the universal AMPS hole pattern. Offering the patented RAM rubber ball, socket and ratcheting feature, you can rotate the rod holder 360 degrees, while tilting the cradle forward and back for the optimum angle.

Specifications
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	1.35 lb

RAM ROD<sup>®</sup> Fishing Rod Holder with Revolution Ratchet/Socket Mount

Questions about our products? Email us for support.

Patented

RAM ROD^® Fishing Rod Holder with Revolution Ratchet/Socket Mount

Part#: RAM-114-RBU

UPC: 793442909214

C Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$46.99
