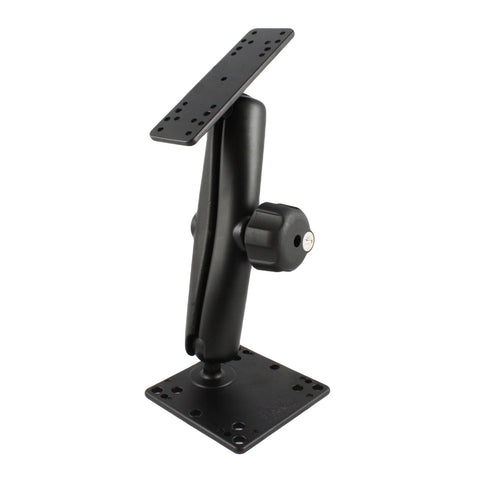

RAM® Locking Double Ball Mount with 100x100mm VESA Plate - C Size Long
Part #: RAM-111LU-D-246 UPC: 793442929731

Product Information
Overview	This kit includes a 100mm x 100mm Vesa mounting plate, a 9 inch double socket arm with keyed lock and a 6.25 x 2 inch mounting plate on top for marine GPS, CB radios, ham radios, Gimbal brackets and more.

Specifications
hardware included	(4) .312" x .187" Shoulder Washers (2) Keys
product dimensions	Overall Height: 7.35"
socket to socket length	8"
hole pattern	See Drawing
plate size	Rectangular Plate: 6.25" x 2" VESA Plate: 4.75" x 4.75"
ball size	C Size (1.5")
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	2.87 lb
Additional Information	The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
