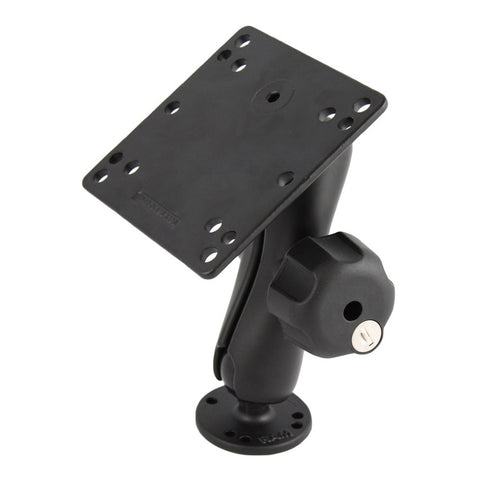

RAM® Key Lock Mount with 100x100mm VESA Plate - Medium
$100.49
This kit contains a 100mm x 100mm industry-standard Vesa mounting plate with c-size 1.5 inch ball, a six-inch double-socket arm and a 2.5 inch diameter plate on bottom with a c-size, 1.5 inch ball. The double socket arm is equipped with a rugged lock instead of a tightening knob. The lock comes with two keys.
RAM® Key Lock Mount with 100x100mm VESA Plate - Medium
Overview
This kit contains a 100mm x 100mm industry-standard Vesa mounting plate with c-size 1.5 inch ball, a six-inch double-socket arm and a 2.5 inch diameter plate on bottom with a c-size, 1.5 inch ball. The double socket arm is equipped with a rugged lock instead of a tightening knob. The lock comes with two keys.
hardware included
(4) .312" x .187" Shoulder Washers
(2) Keys
product dimensions
Overall Height: 7.35"
socket to socket length
4.66"
hole pattern
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
1.66 lb
