$102.99
Dashboard Mount

Features

  • Spring-loaded holder secures most 9"-10.5" tablets with cases; interchangeable end cups allow you to modify the holder when upgrading devices
  • Includes 4-hole AMPS pattern ball adapter, C size medium length double socket arm, and backing plate kit for drill-down mounting; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

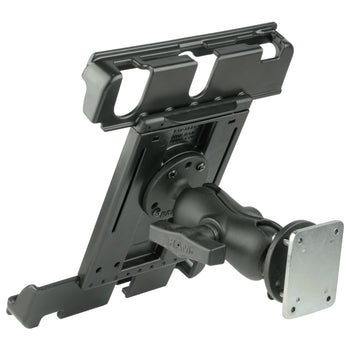

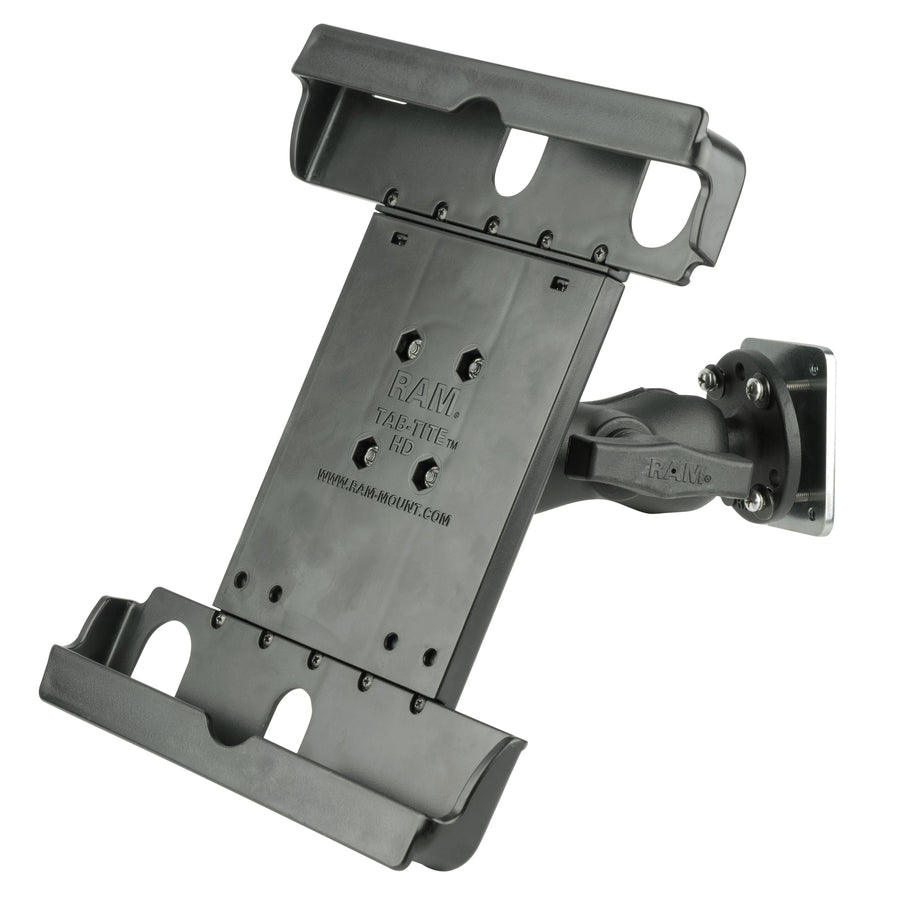

RAM® Dashboard Mount with Backing Plate for 9"-10.5" Tablets with Cases
Part#:RAM-101B2-TAB20U UPC:793442816567 Patented
This rugged dashboard tablet mount consists of a RAM® Tab-Tite™ spring loaded holder for any 9"-10.5" tablets with a case, medium C size double socket arm, two 2.5" diameter round bases that contain the universal AMPS hole pattern, a 2.10" x 2.60" backing plate, and mounting hardware. The mount is designed with a 1.5" diameter C size rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

hardware included

Assembly Hardware
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers

holder dimensions

Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"

socket to socket length

2.5"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum
High strength composite
Powder coated steel

packaging type

Poly Bag

Weight

1.85 lb

Components

RAM® Tab-Tite™ Holder for 9"-10.5" Tablets with Heavy Duty Cases RAM-HOL-TAB20U $36.99
RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Short RAM-101-B-225B2U $68.49
