Overview
The RAM-HOL-TAB20-CUPSU includes (2 qty) Tab-Tite™ cup ends and hardware. The interchangeable support cups can be used, along with all RAM Tab-Tite™ and Tab-Lock™ mounts; these include the universal backplate that support all TAB cups. Hardware is included to attach the cup ends to the backplate.
Features
- Interchangeable RAM® Tab-Tite™ end cups support most 9" tablets with heavy-duty cases
- Included hardware allows for easy attachment to RAM® Tab-Lock™ and RAM® Tab-Tite™ backplates
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

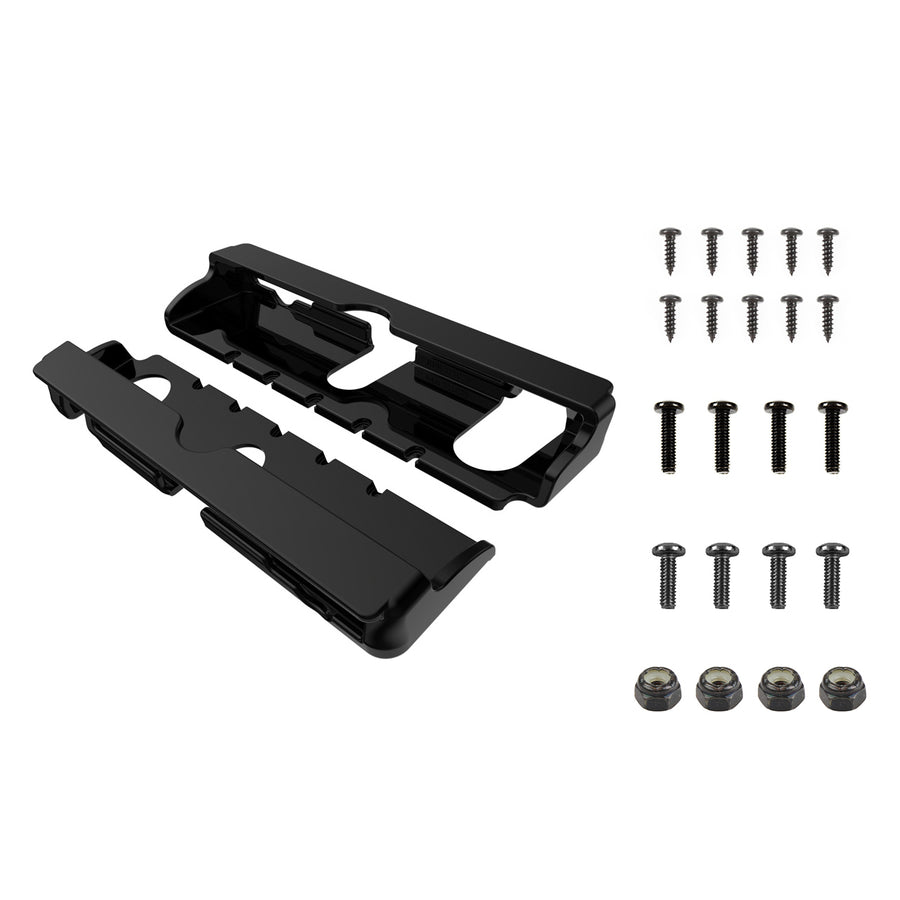

hardware included:
(10) #4 x 3/8" Sheet Metal Screws
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts
holder dimensions:
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.29 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
I have iPad 10th generation will these cups fit
With the dimensions of the iPad 10th gen being (H,W,D) 9.79 x 7.07 x 0.28 and these cups holding
Height Range: 9.5" - 12.125"
Width Range: 6.55" - 7.43"
Depth Range: .3" - .875"These will work for you.
-
I currently have P/N: RAM-HOL-TAB3U SKU: RAMHOLTAB3 that was for a 1st gen iPad Pro. I just purchased an iPad Pro 11" M4. Can I replace the end cups with RAM-HOL-TAB20-CUPSU to make it work? Also, which X-Grip mount will work with this iPad? Thank you.
Yes, you can swap out the cups on the RAM-HOL-TAB3U with RAM-HOL-TAB20-CUPSU to fit your iPad Pro 11" M4 with protective case. If you prefer the x-grip then you need RAM-HOL-UN9U.
