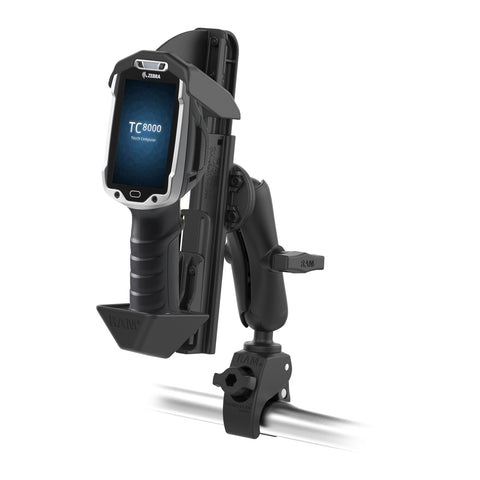

RAM^® Quick-Draw^™ Mount for Zebra TC8000/8300 with RAM^® Tough-Claw^™
Part #: RAM-101-400-ZE9U UPC: 793442012853 Patented & Pats. Pend. Features Spring-loaded RAM^® Quick-Draw^™ holder provides easy removal of your Zebra TC8000 and TC8300 Includes small version of the RAM^® Tough-Claw^™, medium length C size RAM^® double socket arm, and 2.5" round plate compatible with several RAM^® device holders and cradles Large version of the RAM^® Tough-Claw^™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 2.2" in outer diameter; rubber pads provide stable gripping and protection of mounting surface Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Quick-Draw^™ Mount for Zebra TC8000/8300 with RAM^® Tough-Claw^™

Part #: RAM-101-400-ZE9U UPC: 793442012853 Patented & Pats. Pend.

Features

Spring-loaded RAM^® Quick-Draw^™ holder provides easy removal of your Zebra TC8000 and TC8300
Includes small version of the RAM^® Tough-Claw^™, medium length C size RAM^® double socket arm, and 2.5" round plate compatible with several RAM^® device holders and cradles

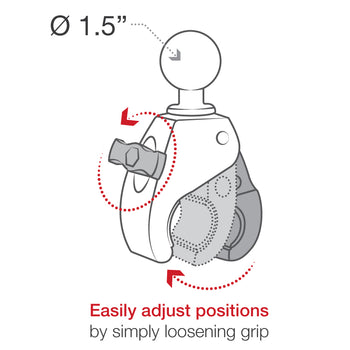

Large version of the RAM^® Tough-Claw^™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 2.2" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Quick-Draw<sup>™</sup> Mount for Zebra TC8000/8300 with RAM<sup>®</sup> Tough-Claw<sup>™</sup>

Product Information
Overview	This RAM^® Quick-Draw^™ is designed specifically for the Zebra TC8000 and TC8300 scanners and consists of the large Tough-Claw^™ base, double socket arm and round base adapter. The RAM Tough-Claw^™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw^™ can be clamped on rails from 1" - 1.14" outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Product Information

Overview

This RAM^® Quick-Draw^™ is designed specifically for the Zebra TC8000 and TC8300 scanners and consists of the large Tough-Claw^™ base, double socket arm and round base adapter. The RAM Tough-Claw^™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw^™ can be clamped on rails from 1" - 1.14" outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Specifications
hardware included	Assembly Hardware
clamp range	.625" - 1.14" diameter
socket to socket length	4.66"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	1.9 lb

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM^® Quick-Draw^™ Mount for Zebra TC8000/8300 with RAM^® Tough-Claw^™

Part#: RAM-101-400-ZE9U

UPC: 793442012853

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$132.99

Options

C Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Options

Overview

Features

Spring-loaded RAM^® Quick-Draw^™ holder provides easy removal of your Zebra TC8000 and TC8300
Includes small version of the RAM^® Tough-Claw^™, medium length C size RAM^® double socket arm, and 2.5" round plate compatible with several RAM^® device holders and cradles
Large version of the RAM^® Tough-Claw^™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 1" to 2.2" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hardware included:

Assembly Hardware

clamp range:

.625" - 1.14" diameter

socket to socket length:

4.66"

ball size:

C Size (1.5")

weight capacity:

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials:

Marine-grade aluminum

packaging type:

Poly Bag

Weight:

1.9 lb

Print

Instructions

Instructions for RAM^® Quick-Draw^™ Form-Fit Holder - Zebra TC8000/8300
