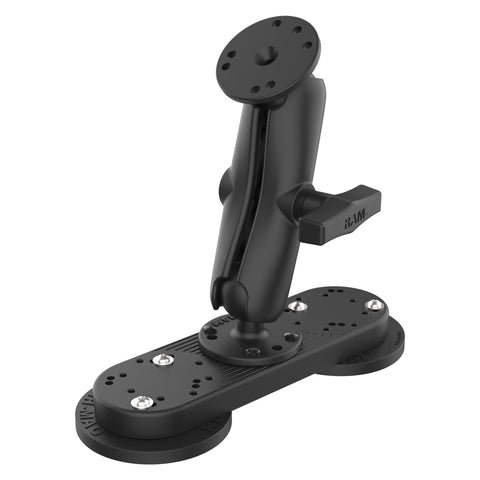

RAM® Tough-Mag™ Double Magnetic Heavy Duty Mount - C Size Medium
Part #: RAM-101-333-MAG88U UPC: 793442034824 Features Dual RAM® Tough-Mag™ base magnetizes to any ferrous metal surface Includes double ball mount built with C size RAM® components; ball and socket technology allows for near-infinite adjustability Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments Backed by a lifetime warranty

Product Information

Overview

The RAM® Tough-Mag™ Double Magnetic Heavy Duty Mount - C Size Medium (RAM-101-333-MAG88U) features a medium-length double socket arm, one 2.5" diameter round base, and one RAM® Tough-Mag™ Double Magnetic Ball Base for a powerful, no-drill mounting solution. Built with C size components from RAM®’s patented rubber ball and socket system, this mount offers adjustability at both ends of the arm for near-infinite positioning. Designed to deliver optimal viewing angles while reducing shock and vibration, the system helps protect and extend the life of your device in demanding environments. The RAM® Tough-Mag™ Double Magnetic Ball Base doubles up the strength of two RAM® Tough-Mag™ pucks to create a heavier-duty magnetic mounting solution for larger tablets or peripheral devices. Each Tough-Mag™ features 10 industrial-strength N52 magnets for a secure hold on any ferrous metal surface, along with a durable rubber coating that prevents scratches and protects mounting surfaces.

Specifications
hardware included	Assembly Hardware
socket to socket length	4.66"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
plate size	2.5" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum N52 Magnets (Qty 10)
packaging type	Poly Bag
Weight	2.14 lb

RAM® Tough-Mag™ Double Magnetic Heavy Duty Mount - C Size Medium

Name: RAM® Tough-Mag™ Double Magnetic Heavy Duty Mount - C Size Medium
Brand: RAM Mounts
SKU: RAM-101-333-MAG88U
Price: 212.99 USD
Availability: InStock

Part#: RAM-101-333-MAG88U

UPC: 793442034824

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
