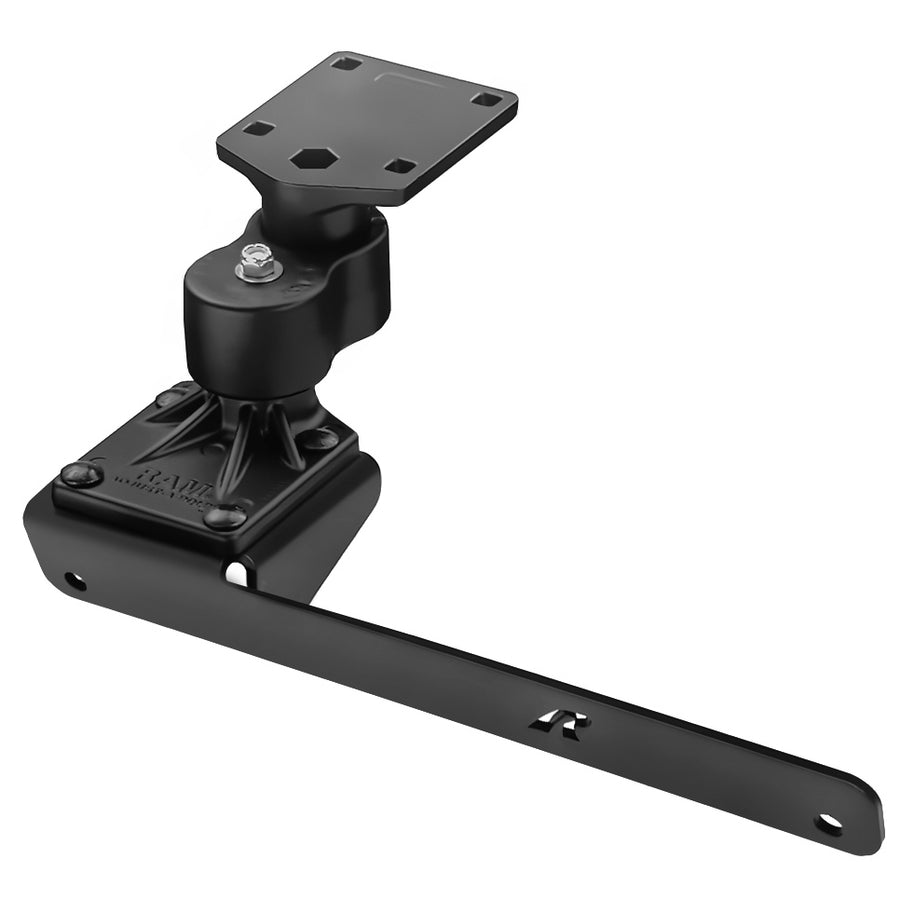

RAM® No-Drill™ Vehicle Base for '12-24 RAM 2500-5500 + More
Part#: RAM-VB-178A
UPC: 793442937248
$144.99

Overview

The RAM® No-Drill™ laptop mounting base features a heavy-duty steel mounting base custom designed to fit this vehicle perfectly. Using the passenger side seat rail bolts as attachment points, existing hardware is used to secure the laptop mount base in the vehicle.

Features

  • RAM® No-Drill™ base designed specifically for 2012-2024 Ram 2500-5500 trucks
  • Compatible with RAM® Tele-Pole™ mounting systems
  • Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
  • Made of powder-coated steel
  • Backed by a lifetime warranty

hardware included:

Assembly Hardware
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers

hole pattern:

Seat Bolt Distance: 13.25" center to center

materials:

Powder coated steel
Marine grade-aluminum

packaging type:

Box

Weight:

7.0 lb

Additional Information:

Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)

Print

Instructions

RAM No-Drill Seat Bases Instructions 178 Series
RAM® Adjust-A-Pole™ Instructions

Questions & Answers

Have a Question?

Ask a Question

  • On a 2019 ram it mounts on the passenger side. How does that affect the passenger seating if it does at all . Do you have pics of it installed?

    We do not have install images of this specific mount at this time. The base is designed to offset the pole as close to the center console as possible. It can vary between vehicles; generally the pole can create a minor intrusion on the passenger's leg space, but overall does not block the passenger seat. If a passenger is needed for shorter ride intervals it should not be an issue, but for any long trips we would recommend the Remove-A-Pole RAM-VB-REM1 which allows you to disconnect and stow the pole system without having to uninstall the base from the floor board.

Add-on & Accessories

RAM® Tele-Pole™ Mounts with 9" Lower and 8" Upper Poles
