Overview

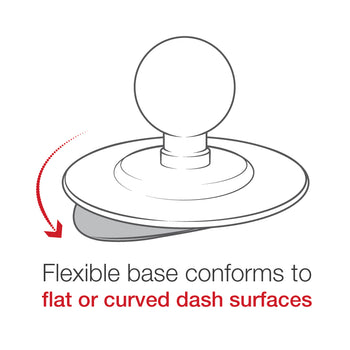

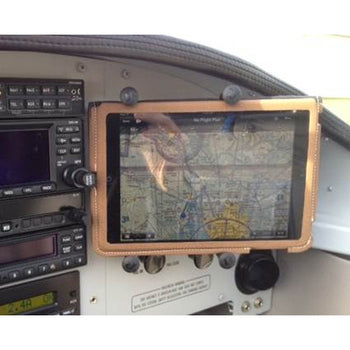

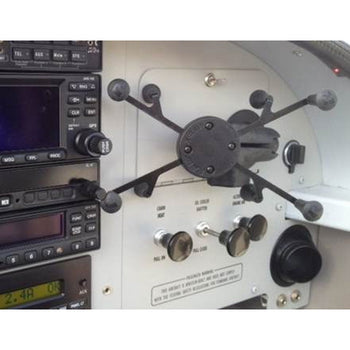

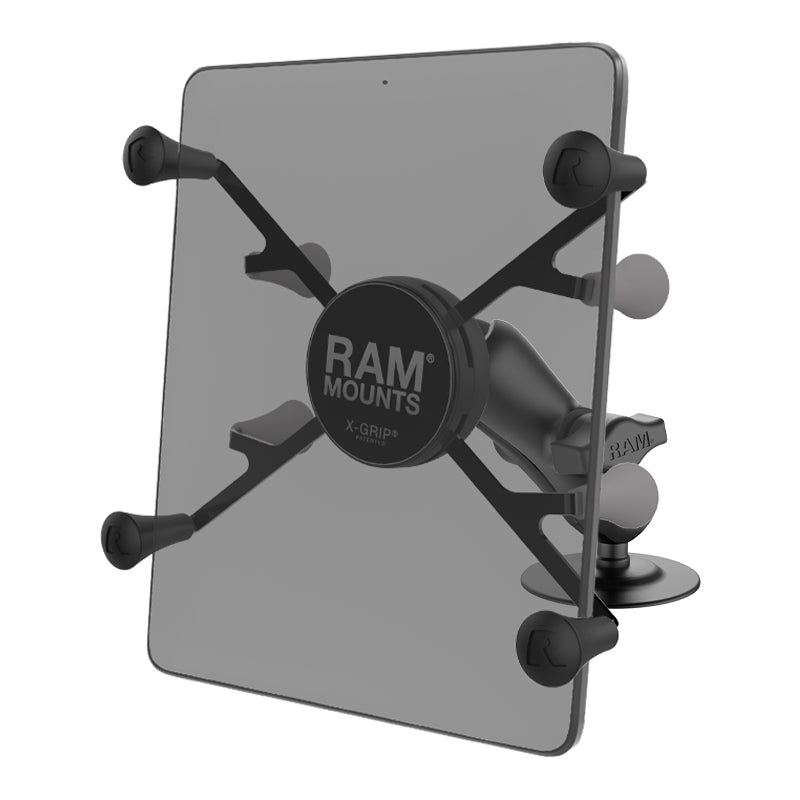

The RAP-B-378-UN8U consists of a flex adhesive base with 1" ball, double socket arm and universal spring loaded X-Grip® cradle for 7"-8" tablets. Using a PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your portable electronics easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7"-8" tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included:

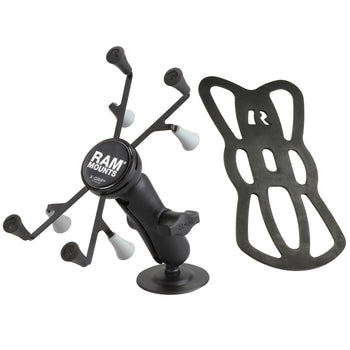

(1) Optional Tether
(1) Glue Tube for Rubber Caps

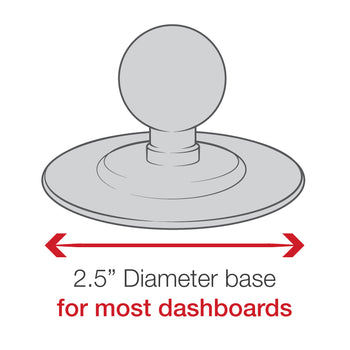

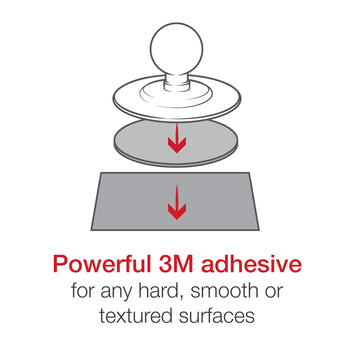

(1) 2.5" Double Sided Adhesive Disc
(1) Alcohol Prep Pad
holder dimensions:
Width Range: 2.5" - 5.75"
Depth Range: .875" max
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
packaging type:
Poly Bag
Weight:
0.61 lb
Instructions
Documents
Questions & Answers
Have a Question?
-
I noticed my tablet can be rotated back and forth about 15 degrees when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
