Overview

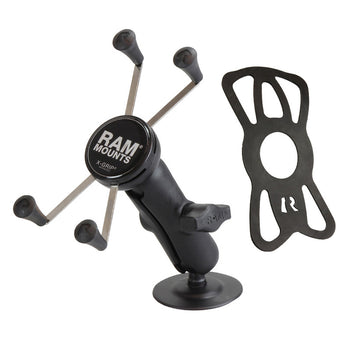

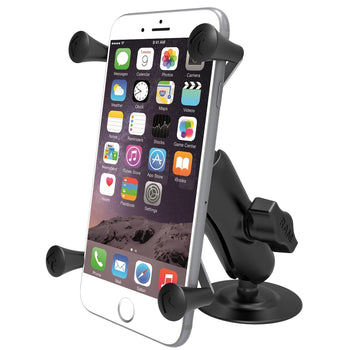

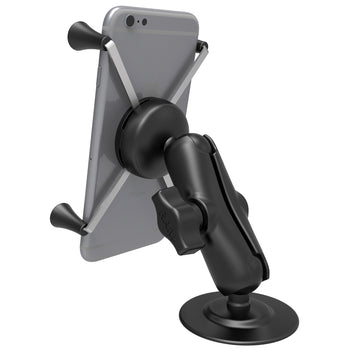

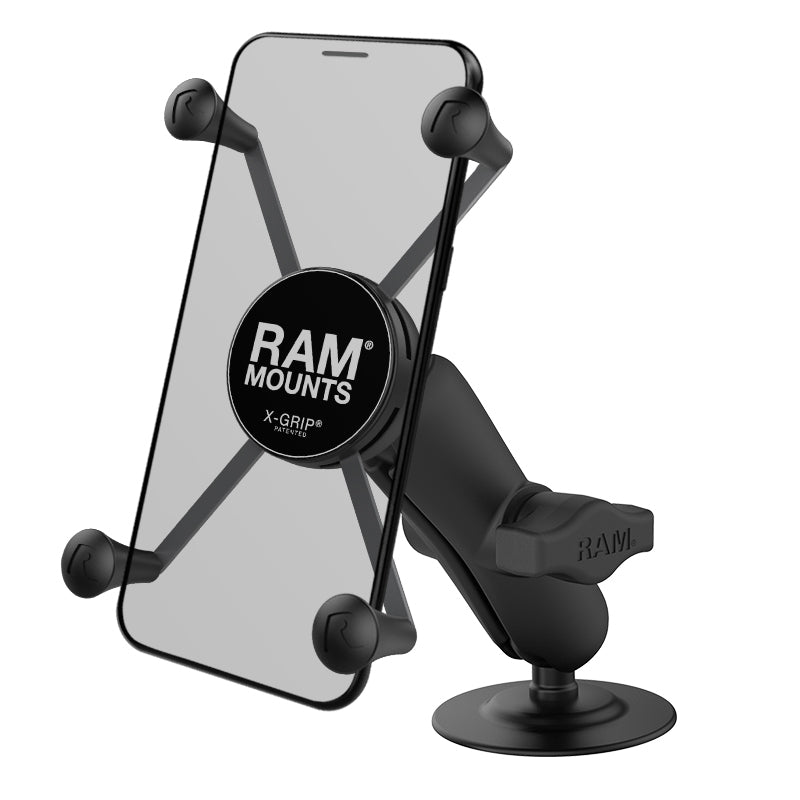

The RAP-B-378-UN10U consists of the flex adhesive base with 1" ball, double socket arm and universal X-Grip® cradle. Using a PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your portable electronics easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Features

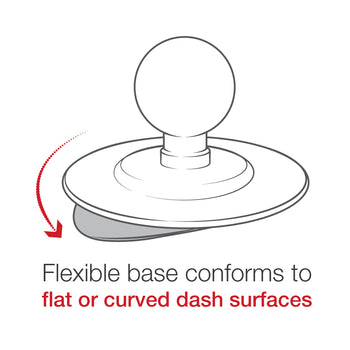

- Flex adhesive ball base provides a strong mounting surface in a wide variety of use cases, such as a vehicle dash
- Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Made of stainless steel components and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps

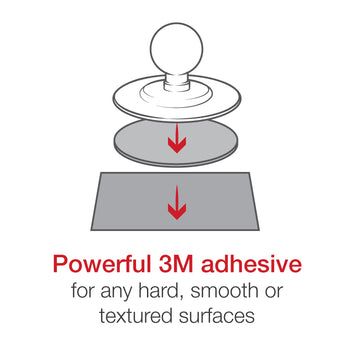

(1) 2.5" Double Sided Adhesive Disc
(1) Alcohol Prep Pad
holder dimensions:

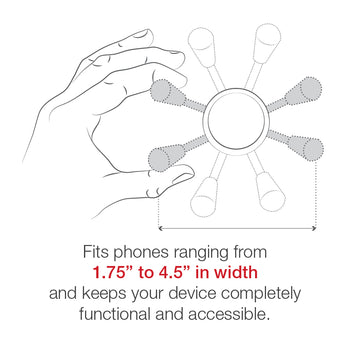

Width Range: 1.75" - 4.5"
Depth Range: .875" max
socket to socket length:
3"

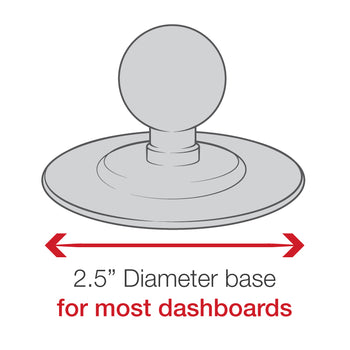

plate size:
2.5" Diameter
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
Stainless steel
packaging type:
Poly Bag
Weight:
0.55 lb
Questions & Answers
Have a Question?
-
I noticed my phone can rotate back and forth when it is in the X-Grip. Is that normal?
That type of movement is totally normal for the X-Grip. When being used for less rugged applications the small amount of movement allowed is not an issue, but sometimes when traveling at higher speeds or in bumpy environments it can be. If that is causing problems in your application, it is best to use the safety tether which will prevent that type of movement by creating tension between the phone and backplate.
-
Looking to use this with a Samsung note20 ultra on my boat, preferably on the windshield, is it compatible?
Yes, as long as the case (if you're using one) on your Samsung Note 20 Ultra doesn't make the total dimensions of your device more than 4.5" wide or .875" thick or deep, then the X-Grip for large phones included in the RAP-B-378-UN10U will be a good option for your application.
