RAM® EZ-Roll'r™ with Flex Adhesive Mount for Garmin eTrex 30 + More

rammount.com
1-800-497-7479
sales@rammount.com

RAM® EZ-Roll'r™ with Flex Adhesive Mount for Garmin eTrex 30 + More
Part #: RAP-B-378-GA48 UPC: 793442938061 Patented & Pats. Pend.

Product Information

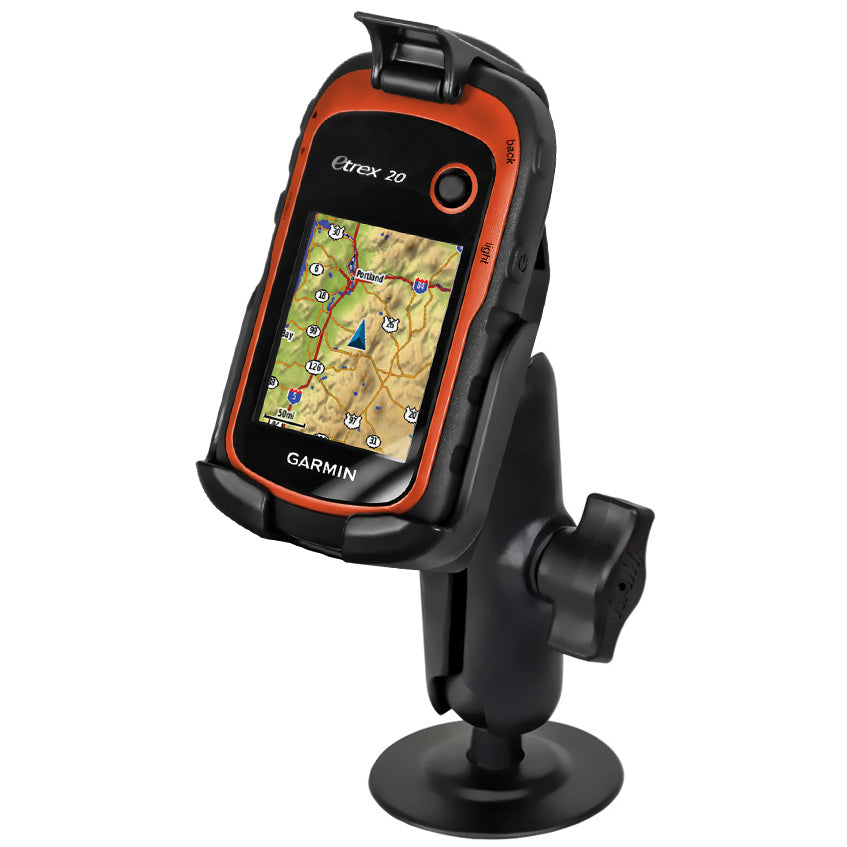

Overview	The RAP-B-378-GA48 consists of 2.5" flex adhesive base, double socket arm, diamond adapter base and high strength composite cradle. Using the included PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your handheld device easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Product Information

Overview

The RAP-B-378-GA48 consists of 2.5" flex adhesive base, double socket arm, diamond adapter base and high strength composite cradle. Using the included PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your handheld device easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

Specifications
hardware included	Assembly Hardware (1) 2.5" Double Adhesive Pad (1) Alcohol Prep Pad
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Retail Bag
Weight	0.65 lb

RAM® EZ-Roll'r™ with Flex Adhesive Mount for Garmin eTrex 30 + More

Questions about our products? Email us for support.

Patented & Pats. Pend.

RAM® EZ-Roll'r™ with Flex Adhesive Mount for Garmin eTrex 30 + More

Part#: RAP-B-378-GA48

UPC: 793442938061

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$48.99

Options

B Size

Medium Arm
