RAM® X-Grip® Phone Mount Flex Adhesive Base
Part #: RAP-B-378-A-UN7U UPC: 793442943157 Patented

Product Information

Overview

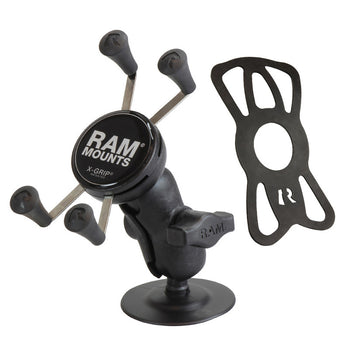

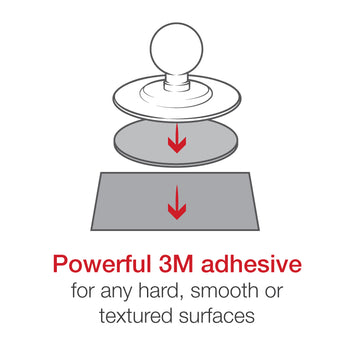

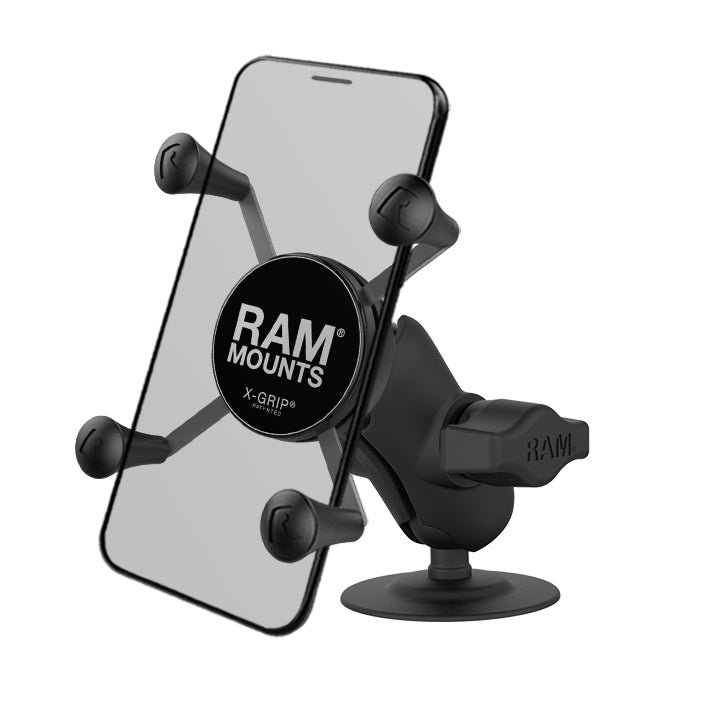

The RAP-B-378-A-UN7U consists of the flex adhesive base with 1" ball, SHORT double socket arm and universal X-Grip® cradle. Using a PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your portable electronics easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone.

Specifications

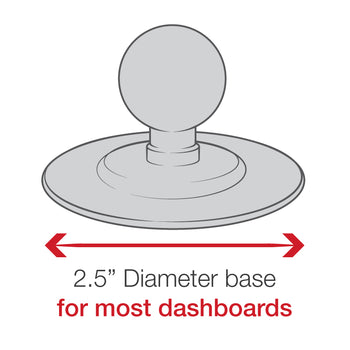

hardware included	(1) Optional Tether (1) Glue Tube for Rubber Caps (1) 2.5" Double Sided Adhesive Disc (1) Alcohol Prep Pad
holder dimensions	Width Range: 1.875" - 3.25" Depth Range: .875" max
socket to socket length	1.75"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite Stainless steel
packaging type	Poly Bag
Weight	0.4 lb

RAM® X-Grip® Phone Mount Flex Adhesive Base

Patented

RAM® X-Grip® Phone Mount Flex Adhesive Base

Name: RAM® X-Grip® Phone Mount Flex Adhesive Base
Brand: RAM Mounts
SKU: RAP-B-378-A-UN7U
Price: 70.49 USD
Availability: InStock

Part#: RAP-B-378-A-UN7U

UPC: 793442943157

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
