RAM® Flex Adhesive Double Ball Mount with Action Camera Adapter

rammount.com
1-800-497-7479
sales@rammount.com

RAM^® Flex Adhesive Double Ball Mount with Action Camera Adapter
Part #: RAP-B-378-202U-GOP1 UPC: 793442938825

Product Information

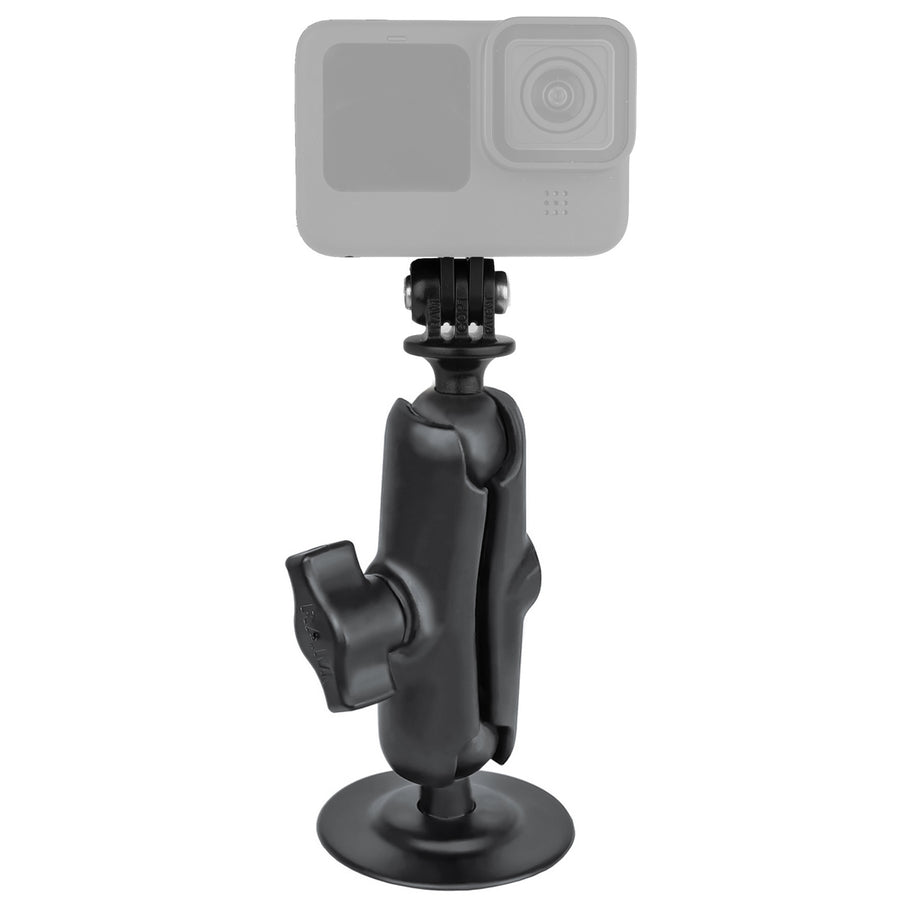

Overview	The RAP-B-378-202U-GOP1 consists of 2.5" flex adhesive base, double socket arm and custom GoPro^® Hero adapter. Using the included PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your handheld device easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The GoPro^® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.

Product Information

Overview

The RAP-B-378-202U-GOP1 consists of 2.5" flex adhesive base, double socket arm and custom GoPro^® Hero adapter. Using the included PSA stick pad, put the flex adhesive mount practically anywhere you want to keep your handheld device easy to see and always within your reach. Designed with a very small foot print, finding a home on your scooter, motorcycle, kayak, boat or vehicle dash is easy. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The GoPro^® Hero adapter attaches directly to the underside of the camera, replacing the factory mounting bracket.

Specifications
hardware included	Assembly Hardware (1) 2.5" Double Adhesive Pad (1) Alcohol Prep Pad
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.35 lb

RAM<sup>®</sup> Flex Adhesive Double Ball Mount with Action Camera Adapter

Questions about our products? Email us for support.

RAM^® Flex Adhesive Double Ball Mount with Action Camera Adapter

Part#: RAP-B-378-202U-GOP1

UPC: 793442938825

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Compatible Devices

GoPro

Hero

Session

Garmin

Virb

SJCAM

SJ4000

SJ5000X Elite 4K

Muvi

veho K-Series K-2 Pro 4K

Xcel

1080C

Vivitar

ACTIVEON

CX Gold

Discovery

Kids Photo & Video Adventure Camera

AEE

ACE S70 Black 16MP 2"

AKASO

EK7000 4K WIFI Sports

AEDILYS

4K WIFI Sports

Lightdow

LD4000 1080P HD

WiMiUS

Q2 Black 1080P Wifi

Vtin

WiFi

$37.99

Options

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes
