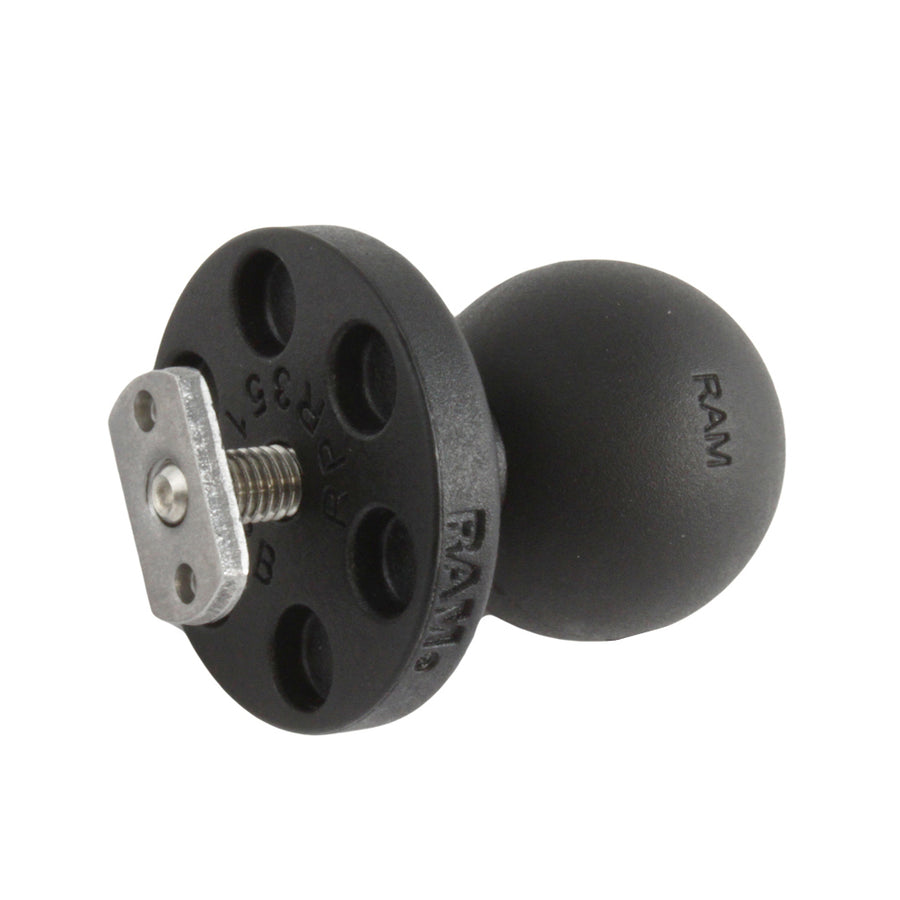

RAM^® Track Ball^™ Flat Panel Adapter - B Size
Part #: RAP-B-375U UPC: 793442928987 Features Includes T-slot attachment piece compatible with flat panels Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability Made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty

RAM^® Track Ball^™ Flat Panel Adapter - B Size

Part #: RAP-B-375U UPC: 793442928987

Features

Includes T-slot attachment piece compatible with flat panels
Included B size 1" RAM^® rubber ball allows for connection to any B size RAM^® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

RAM<sup>®</sup> Track Ball<sup>™</sup> Flat Panel Adapter - B Size

Product Information
Overview	Many devices offer a T-Slot attachment point on the back enabling the user to mount the device using a variety of mounting solutions. Now RAM offers the most innovative mounting solution to interface with standard T-Slot attachment points. Simply slide the RAM T-Slot attachment piece into the T-Slot interface and twist the ball to tighten. The adaptor is available with the RAM 1” ball as well as the RAM 1.5” ball enabling this product to be used on a wide variety of devices in unlimited applications. Backed with a lifetime warranty, RAM continues to please with their rapidly growing mounting product line.

Product Information

Overview

Many devices offer a T-Slot attachment point on the back enabling the user to mount the device using a variety of mounting solutions. Now RAM offers the most innovative mounting solution to interface with standard T-Slot attachment points. Simply slide the RAM T-Slot attachment piece into the T-Slot interface and twist the ball to tighten. The adaptor is available with the RAM 1” ball as well as the RAM 1.5” ball enabling this product to be used on a wide variety of devices in unlimited applications. Backed with a lifetime warranty, RAM continues to please with their rapidly growing mounting product line.

Specifications
hardware included	(1) #10-32 x 1.5" Screw with Weld Nut (1) #10-32 Nylock Nut
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.1 lb

Questions about our products? Email us for support.

RAM^® Track Ball^™ Flat Panel Adapter - B Size

Part#: RAP-B-375U

UPC: 793442928987

B Size

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
