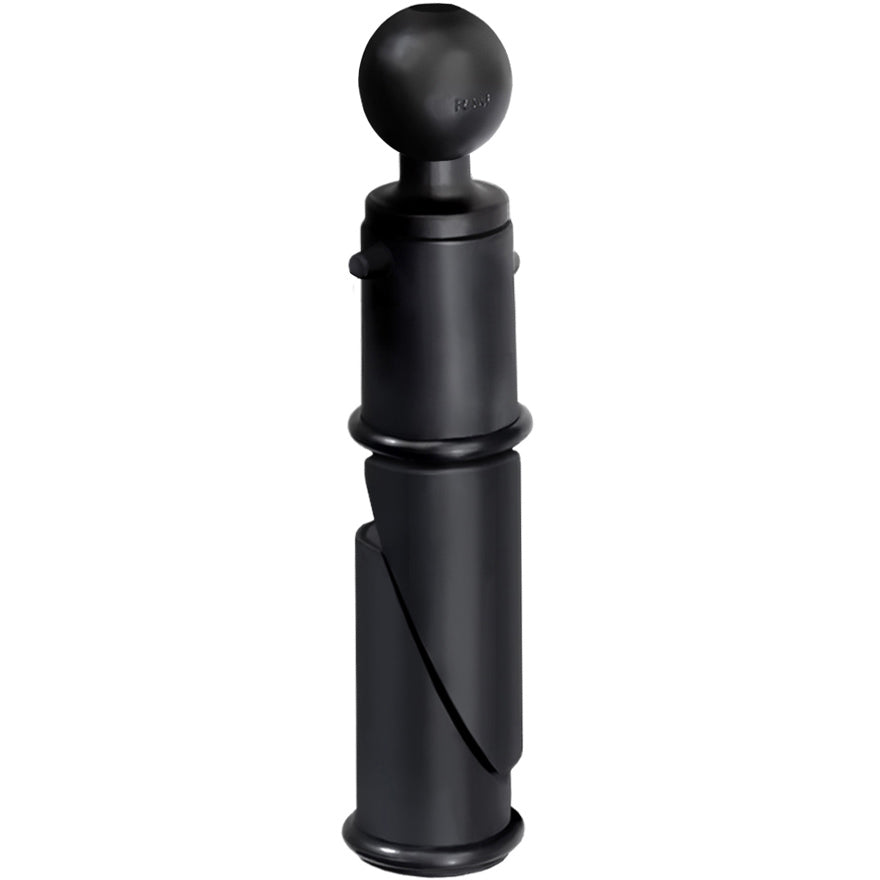

RAM® Ball Base with Flush Tube Wedge Adapter - B Size
Part #: RAP-B-354-162U UPC: 793442939457 Patented

Product Information

Overview

The new RAM Wedge adapter for flush mount rod holders is a great way to mount a wide variety of RAM products. Simply slide the wedge into the round opening of your flush mount rod holder and tighten the screw to secure the wedge. The RAM wedge adapter base expands to accommodate openings with an inner diameter of 1 1/2" to 1 7/8". Once installed, you have the perfect way to mount anything from RAM Rod holders, Cup Holders, Cameras, Fishfinders, and much more. Whether you are trying to get your rod and reel up off the deck to avoid salt spray, need more versatility in rod holder placement, or simply need another mounting position and don't want to drill holes, this is your perfect solution.

Specifications
hardware included	Assembly Hardware
wedge dimensions	Fits tube diameters 1.5" - 1.875"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.37 lb

Patented

RAM® Ball Base with Flush Tube Wedge Adapter - B Size

Name: RAM® Ball Base with Flush Tube Wedge Adapter - B Size
Brand: RAM Mounts
SKU: RAP-B-354-162U
Price: 30.49 USD
Availability: InStock

Part#: RAP-B-354-162U

UPC: 793442939457

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
