Overview

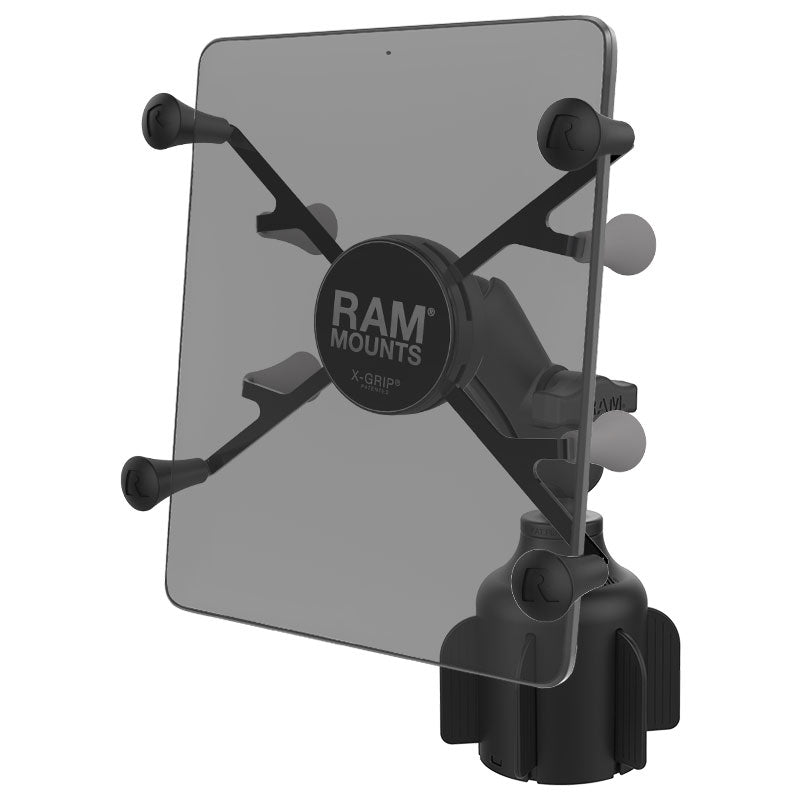

The RAP-B-299-4-UN8U consists of a spring loaded cradle with grip knobs on the back for a quick release function of your tablet. Connecting to the X-Grip is the RAM Stubby™ cup holder mount. The durable composite shell construction and flexible support fins can be trimmed to size make this cup holder base a portable and versatile solution. The RAM ball and socket system allows for articulation at both ends of the double socket arm creating almost infinite adjustment and perfect viewing angles. Compatible with any vehicle cup holder with an inside diameter range of 2.57" to 3.5". The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
hardware included:
(1) Optional Tether
(1) Glue Tube for Rubber Caps
product dimensions:
Overall Height: 9.15"
holder dimensions:
Width Range: 2.5" - 5.75"
Depth Range: .875" max
wedge dimensions:
Fits cup holders between 2.57" - 3.5" inside diameter
socket to socket length:
3"
ball size:
B Size (1")
weight capacity:
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials:
High strength composite
packaging type:
Poly Bag
Weight:
1.62 lb
