RAM® Composite Ball Base with 1.5" x 2" 4-Hole Pattern
Part #: RAP-B-202U-225 UPC: 793442908811 Features Included B size 1" RAM® rubber balls allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability Made of high-strength composites for durability and reliability in the most demanding environments Backed by a lifetime warranty

Product Information

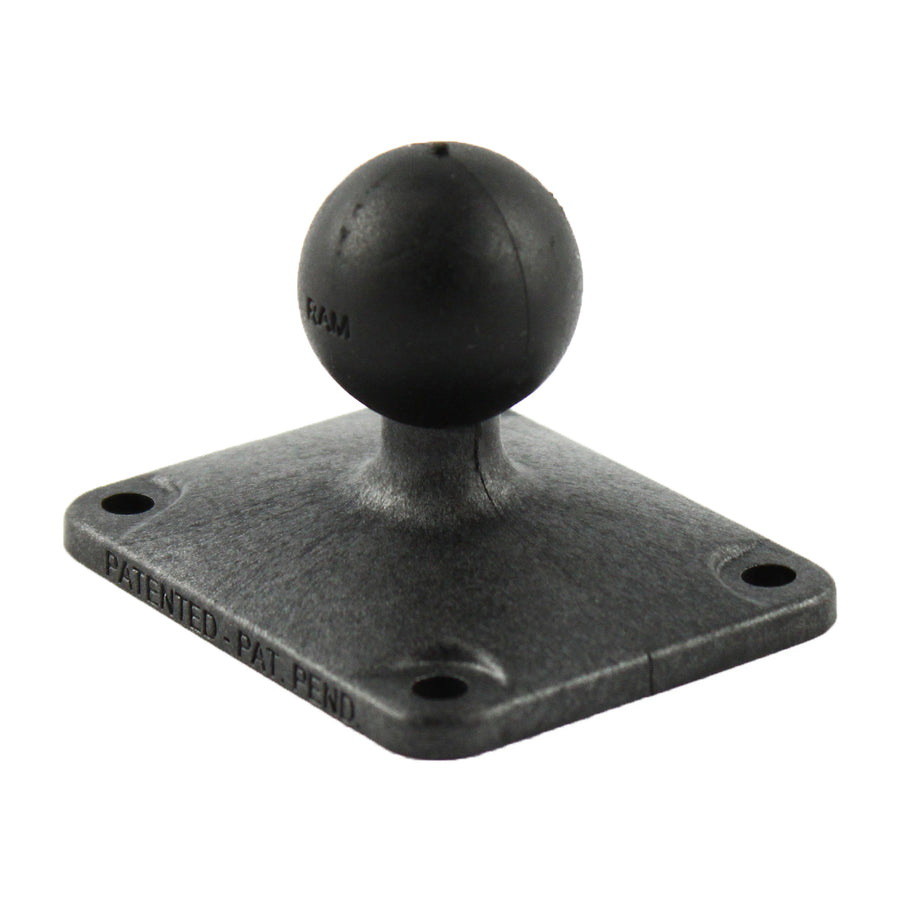

Overview	The RAP-B-202U-225 contains a 1" diameter rubber ball connected to a high strength composite rectangular plate with a 4-hole pattern of 1.5" x 2" center to center.

Specifications
hole pattern	1.5" x 2"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.09 lb

RAM® Composite Ball Base with 1.5" x 2" 4-Hole Pattern

Name: RAM® Composite Ball Base with 1.5" x 2" 4-Hole Pattern
Brand: RAM Mounts
SKU: RAP-B-202U-225
Price: 8.99 USD
Availability: InStock

Part#: RAP-B-202U-225

UPC: 793442908811

$8.99

Options

Overview

The RAP-B-202U-225 contains a 1" diameter rubber ball connected to a high strength composite rectangular plate with a 4-hole pattern of 1.5" x 2" center to center.

Features

Included B size 1" RAM® rubber balls allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

hole pattern:

1.5" x 2"

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

Weight:

0.09 lb

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.

Print

Documents

Drawing File: Composite Rectangular Ball Base

Hole Pattern Reference Guide

Knowledge Base: Ball Sizes

Knowledge Base: Materials

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

RAM® Composite Ball Base with 1.5" x 2" 4-Hole Pattern

$8.99

Every RAM® mount is built around a rubber ball and socket system. The ball size sets how much weight the mount can carry. Match it to your device for smooth adjustment with a rock-solid hold.

RAM Mounts ball size specifications and typical uses
Size	Ball Diameter	Max Load*	Best For
A	0.56" (14.3 mm)	0.5 lb	Action cameras and other ultra-light devices
B — this product	1" (25.4 mm)	2 lbs	Phones, GPS units, and small tablets — the most common size
C	1.5" (38.1 mm)	4 lbs	Large tablets, fish finders, and rougher rides
D	2.25" (57.2 mm)	6 lbs	Rugged tablets, laptops, and heavy equipment
E	3.38" (85.9 mm)	15 lbs	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1" B ball, while RAM-D-201 uses a 2.25" D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.
