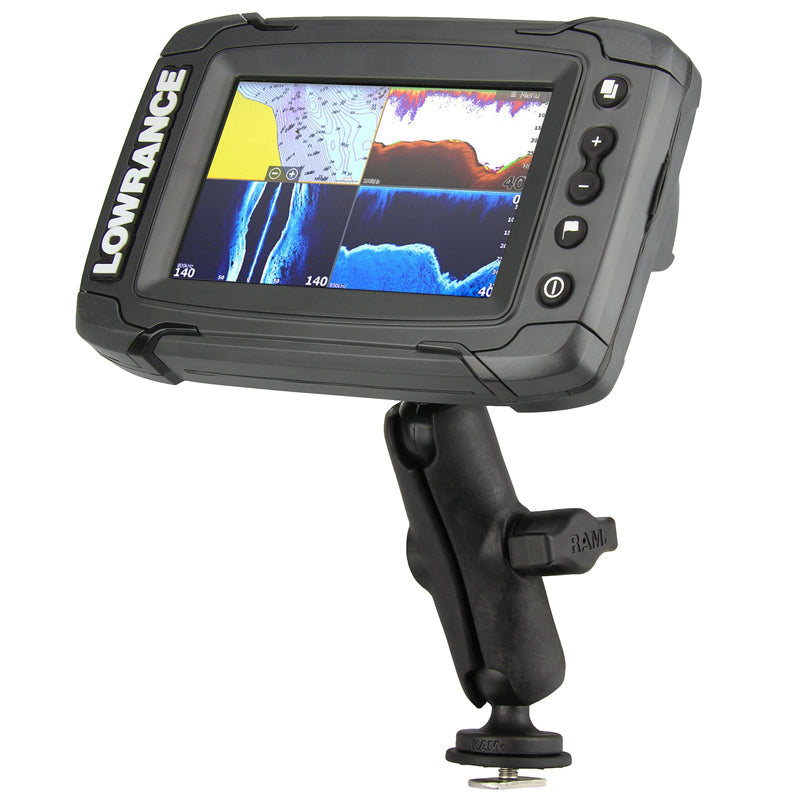

RAM® Track Ball™ Mount for Lowrance Elite-4 & Mark-4 Series
Part #: RAP-B-202-LO11-354-TRA1U UPC: 793442955143

Product Information
Overview	The RAP-B-202-LO11-354-TRA1U consists of a Track Ball™ base, composite double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook 4 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. A key feature of the mount is a 1" diameter rubber ball and socket system with adjustment points at both socket ends of the arm. Combined with RAM's rubber ball and socket technology, this allows for high adjustibility to achieve perfect viewing angles. Compatible with virtually any track system including the RAM Tough-Track™.

Product Information

Overview

The RAP-B-202-LO11-354-TRA1U consists of a Track Ball™ base, composite double socket arm and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4 and Hook 4 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. A key feature of the mount is a 1" diameter rubber ball and socket system with adjustment points at both socket ends of the arm. Combined with RAM's rubber ball and socket technology, this allows for high adjustibility to achieve perfect viewing angles. Compatible with virtually any track system including the RAM Tough-Track™.

Specifications
hardware included	(1) Friction Washer (1) 1/4"-20 x 7/8" T-Bolt
t bolt dimensions	.48" x .95"
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.39 lb
Additional Information	This product is not compatible with the standard Lowrance Elite-7.

RAM® Track Ball™ Mount for Lowrance Elite-4 & Mark-4 Series

Questions about our products? Email us for support.

RAM® Track Ball™ Mount for Lowrance Elite-4 & Mark-4 Series

Part#: RAP-B-202-LO11-354-TRA1U

UPC: 793442955143

B Size

Medium Arm

Size Guide

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$39.49
