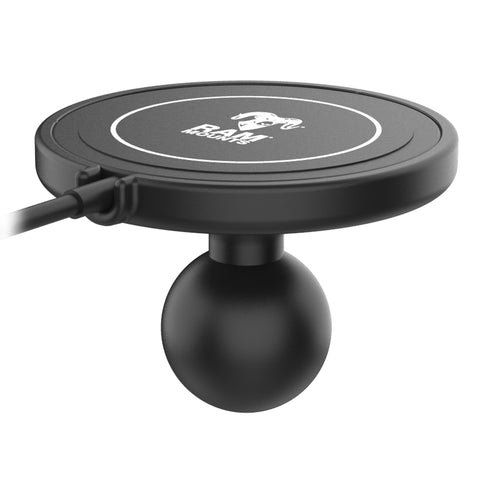

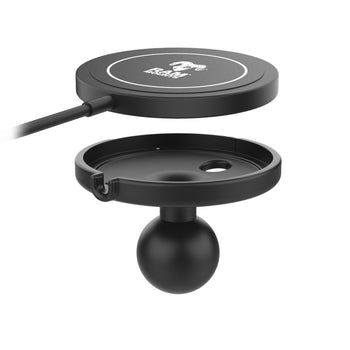

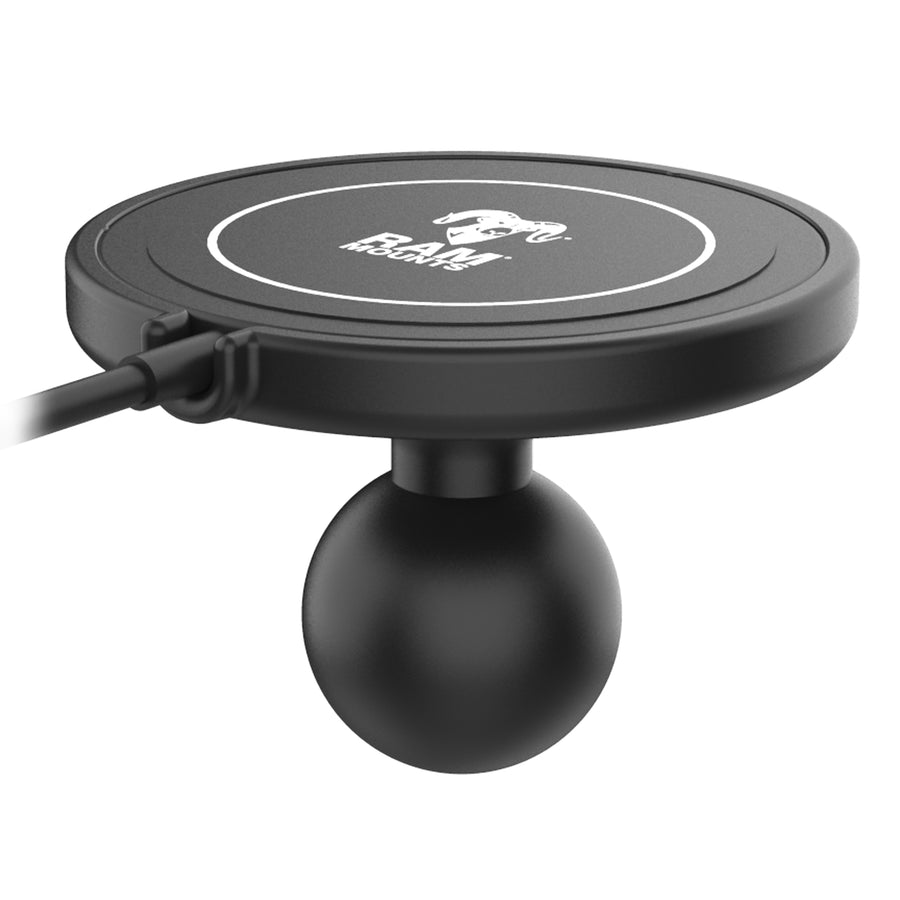

RAM® Ball Adapter with RAM® Qi2 15W Wireless Charger

Part#: RAP-B-202-AP-MAG-1-W2MU
UPC: 793442031717
$71.99

Overview

The RAM® Ball Adapter with RAM® Qi2 15W Wireless Charger (RAP-B-202-AP-MAG-1-W2MU) makes it easy to add wireless charging to your existing RAM® Mount setup—or build a custom one from scratch. The ball adapter securely holds the Qi2 15W Wireless Charger, giving your iPhone 12, 13, 14, 15, 16 (Plus, Pro, Pro Max, and later) a snap-on magnetic connection for effortless MagSafe® charging. Compatible with RAM® B size socket arms, this bundle gives you the flexibility to mount your phone in virtually any vehicle location with the right base. A simple, reliable way to keep your device powered while you’re on the move.

Features

  • Wireless charger and form-fit ball adapter compatible with any RAM® B size ball and socket components
  • 15W Qi2 fast charging for efficient power delivery
  • Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
  • Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

hardware included:

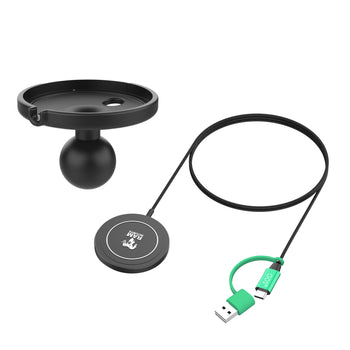

(1) Ball Adapter

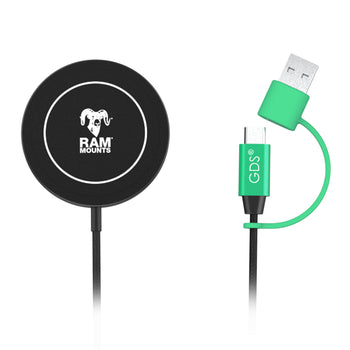

(1) RAM® Qi2 Wireless Charging Puck

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

power specifications:

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

input voltage:

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A

power output:

BPP - 5W
EPP - 7.5W
MPP - 15W

output connector:

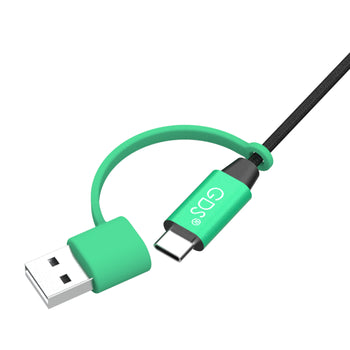

USB Type-C Male with USB-A Adapter

output cable length:

1 Meter

operating temperature:

0°C to +40°C

storage temperature:

-20°C to +80°C

regulatory:

Over Current Protection
Short Cirtcuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance

certifications:

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Additional Information:

The included wireless charger will support up to 8mm charging distance between puck and device.

Return Policy:

All products purchased from RAM® can be returned within 30 days with no restocking fee (return shipping not provided). See full return policy here.
