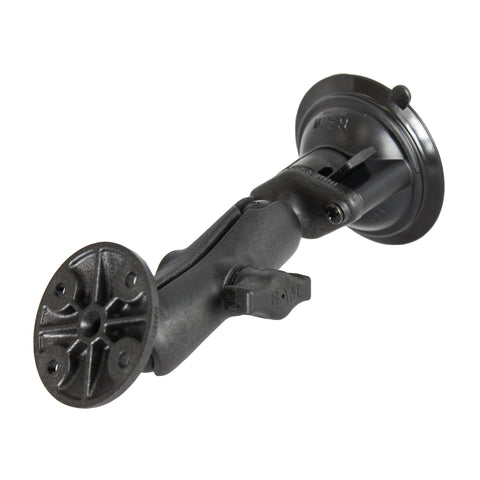

RAM® Twist-Lock™ Composite Suction Mount with Round Plate - Medium
Part #: RAP-B-166-202U UPC: 793442906268 Patented

Product Information

Overview

The RAP-B-166-202U consists of a double socket arm, 3.3" suction cup twist lock base and round base adapter that contains the universal AMPs hole patter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adapter will connect to many RAM cradles. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks.

Specifications
suction size	3.3" Diameter
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.52 lb
Additional Information	*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.

RAM® Twist-Lock™ Composite Suction Mount with Round Plate - Medium

Patented

RAM® Twist-Lock™ Composite Suction Mount with Round Plate - Medium

Name: RAM® Twist-Lock™ Composite Suction Mount with Round Plate - Medium
Brand: RAM Mounts
SKU: RAP-B-166-202U
Price: 39.49 USD
Availability: InStock

Part#: RAP-B-166-202U

UPC: 793442906268

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
