$40.99

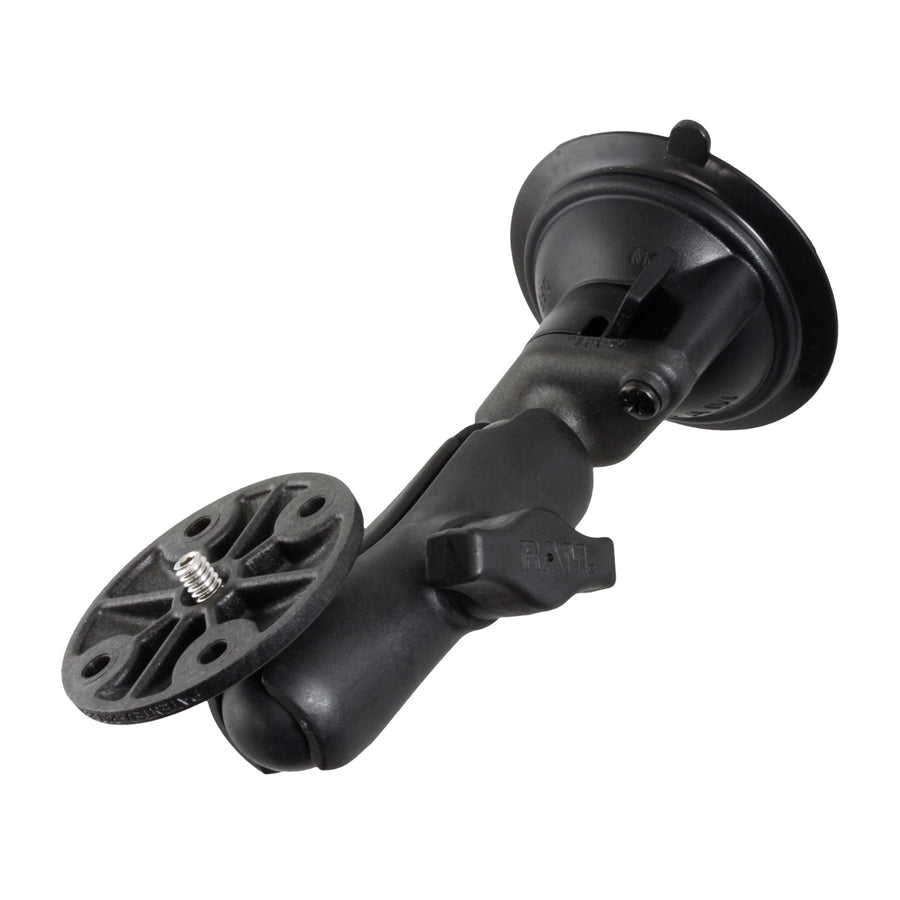

RAM® Twist-Lock™ Composite Suction Mount with Round Plate & 1/4"-20 Stud
Part#:RAP-B-166-202AU UPC:793442940361 Patented
The RAP-B-166-202AU consists of a 3.3" suction cup twist lock base, double socket arm and round base adapter that contains a 1/4"-20 male camera thread. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The camera base contains a 1" rubber ball that is connected to a 2.5" diameter round base. Also, included is a 1/4"-20 threaded steel stud, centered, the round base provides support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.

suction size

3.3" Diameter

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

High strength composite

packaging type

Poly Bag

Weight

0.67 lb

Additional Information

*The rubber material used in suction cups is considered a general wear item and is not covered under the lifetime warranty. Learn more about the RAM® warranty policy here.
