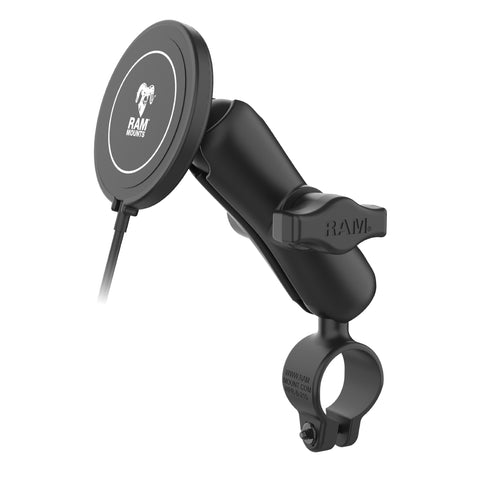

RAM® Double Ball Rail Mount with RAM® Qi2 15W Wireless Charger

Part #: RAP-B-149-AP-MAG-1-W2MU UPC: 793442035739

Features

Adapter compatible with included RAM® Qi2 15W Wireless Charger
Includes RAM® composite base for 1-inch rails and medium length, B size RAM® double socket arm
Single-screw installation, tightens easily using the included #6‑32 screw and nylock nut
Ball and socket technology allows for near-infinite adjustability
Backed by a lifetime warranty; 3-year warranty on electronic components

RAM® Double Ball Rail Mount with RAM® Qi2 15W Wireless Charger

Product Information

Overview

The RAM® Double Ball Rail Mount with RAM® Qi2 15W Wireless Charger (RAP-B-149-AP-MAG-1-W2MU) seamlessly integrates the RAM® Qi2 15W Wireless Charger into the RAM® ball and socket ecosystem, delivering a secure and dependable in-vehicle mounting solution. This complete kit includes the RAM® Qi2 15W Wireless Charger along with a precision-fit adapter that keeps the charger securely in place, while compatible smartphones magnetically align and snap into position for effortless mounting and fast wireless charging. Also included is a RAM® Composite Ball Base for 1" rails and a B size medium-length socket arm, perfect for the RAM® Tough-Bar™.

Specifications
hardware included	(1) #6-32 x 5/8" Machine Screw (1) #6-32 Nylock Nut
clamp range	1" diameter
socket to socket length	3"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
power specifications	Operating Frequency: 360KHZ Stand-by Consumption ~ 0.008A / 8mA @5VDC 80% Wireless Power Transfer Efficiency or Greater Supports USB 2.0 BC1.2 Power Supply (5V) Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage	USB 5V @ 3A QC2.0 9V @ 2.22A USB PD 2.0 5-15V @ 2A
power output	BPP - 5W EPP - 7.5W MPP - 15W
output connector	USB Type-C Male with USB-A Adapter
output cable length	1 Meter
operating temperature	0°C to +40°C
storage temperature	-20°C to +80°C
regulatory	Over Current Protection Short circuit Protection Over Temperature Protection RoHS Compliance WEEE Compliance
certifications	IP67 SAE J1455 FCC Certification CE Certification E-Mark Certification RCM Certification
Weight	0.44 lb
Additional Information	The included wireless charger will support up to 8mm charging distance between puck and device. A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.

RAM® Double Ball Rail Mount with RAM® Qi2 15W Wireless Charger

Name: RAM® Double Ball Rail Mount with RAM® Qi2 15W Wireless Charger
Brand: RAM Mounts
SKU: RAP-B-149-AP-MAG-1-W2MU
Price: 85.99 USD
Availability: InStock

Part#: RAP-B-149-AP-MAG-1-W2MU

UPC: 793442035739

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

$85.99

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fish Finders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A

Overview

Features

Adapter compatible with included RAM® Qi2 15W Wireless Charger
Includes RAM® composite base for 1-inch rails and medium length, B size RAM® double socket arm
Single-screw installation, tightens easily using the included #6‑32 screw and nylock nut
Ball and socket technology allows for near-infinite adjustability
Backed by a lifetime warranty; 3-year warranty on electronic components

hardware included:

(1) #6-32 x 5/8" Machine Screw
(1) #6-32 Nylock Nut

clamp range:

1" diameter

socket to socket length:

ball size:

B Size (1")

weight capacity:

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials:

High strength composite

packaging type:

Poly Bag

power specifications:

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0

input voltage:

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A

power output:

BPP - 5W
EPP - 7.5W
MPP - 15W

output connector:

USB Type-C Male with USB-A Adapter

output cable length:

1 Meter

operating temperature:

0°C to +40°C

storage temperature:

-20°C to +80°C

regulatory:

Over Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance

certifications:

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Weight:

0.44 lb

Additional Information:

The included wireless charger will support up to 8mm charging distance between puck and device.

A reduction in vibration does not guarantee full protection of device. External immeasurable factors may cause damage to phones, cameras, and other devices while mounted. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage. RAM® mounts lifetime warranty is limited to RAM® mounts and components. The warranty does not include any device mounted or attached to a RAM® mount, such as a phone, GPS, camera, computer or other device.
