RAM® Aqua Box® Composite Drill-Down Mount for Medium Devices
Part #: RAP-B-140-AQ2U UPC: 793442911781 Patented

Product Information

Overview

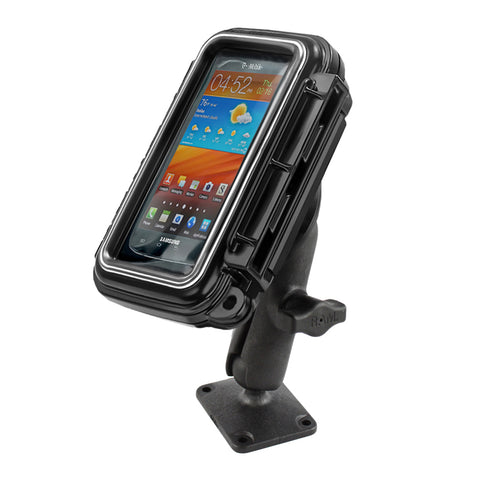

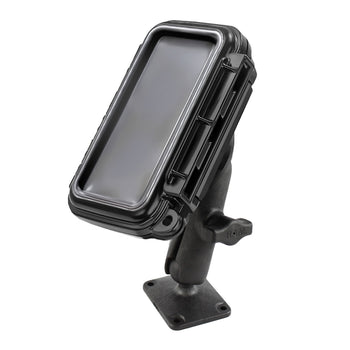

The RAP-B-140-AQ2U consists of a square base with the universal AMPS hole pattern, double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and sealed enclosed medium size AQUA BOX®. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The AQUA BOX® case provide sealed enclosure and protection for your handheld device. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent.

Specifications
hardware included	Assembly Hardware
internal dimensions	Width: 2.88" Height: 5.75" Depth: 1.188"
socket to socket length	3"
hole pattern	1.5" x 2"
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	High strength composite
packaging type	Poly Bag
Weight	0.86 lb

RAM® Aqua Box® Composite Drill-Down Mount for Medium Devices

Patented

RAM® Aqua Box® Composite Drill-Down Mount for Medium Devices

Name: RAM® Aqua Box® Composite Drill-Down Mount for Medium Devices
Brand: RAM Mounts
SKU: RAP-B-140-AQ2U
Price: 68.99 USD
Availability: InStock

Part#: RAP-B-140-AQ2U

UPC: 793442911781

Ball Size
Arm Sizes

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured by a multitude of interchangeable components to fit your specific needs.

A Size

Holds .5 lbs.

Trail Cameras

B Size

Holds 2 lbs.

Phones, Action Cameras, Light Duty Tablets

C Size

Holds 4 lbs.

Fishfinders, Heavy Duty Tablets

D Size

Holds 6 lbs.

Heavy Monitors

E Size

Holds 15 lbs.

Heavy Monitors

The unique double ball and socket design allows you to adjust your mount to the perfect viewing or operating angle, all with the turn of a single knob. This modular design can be configured with a variety of interchangeable components to fit your specific mounting needs.

Size	A Size	B Size	C Size	D Size	E Size
Short Arm	Overall Length N/A	Overall Length 2.42"	Overall Length 3.56"	Overall Length 5.69"	Overall Length 5.69"
Short Arm	Socket-to-Socket Length N/A	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 2.5"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 4.66"
Medium Arm	Overall Length 2.42"	Overall Length 3.73"	Overall Length 5.69"	Overall Length 8.44"	Overall Length 12.63"
Medium Arm	Socket-to-Socket Length 1.75"	Socket-to-Socket Length 3"	Socket-to-Socket Length 4.66"	Socket-to-Socket Length 6.88"	Socket-to-Socket Length 9.88"
Long Arm	Overall Length 6"	Overall Length 6"	Overall Length 9.13"	Overall Length 12.98"	Overall Length N/A
Long Arm	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 5.31"	Socket-to-Socket Length 8"	Socket-to-Socket Length 11.41"	Socket-to-Socket Length N/A
